$495.00 USD
Here are all the advantages of UpBlink:
Use UpBlink to achieve long term time lapse and/or motion detection (coming soon) for your next project. Just plug it into your GoPro and use the UpBlink app to connect and configure separate schedules (including email scheduling) using a smartphone, tablet, computer, or any WiFi enabled device which has a web browser (app connection is directly with UpBlink so no cell service or internet connection required). For more information, see the Quick Start Guide and User Manual.
A WiFi network or a data hotspot is required (see below) with internet access is only required if you would like to use our optional Blink Email feature to provide daily status updates straight to your inbox.
If you are looking at a long term time lapse you may be interested in our Construction Time Lapse packs which incorporate weatherproof enclosures external solar power for long term deployment or where finding a power supply is difficult or expensive.
Compatible with the GoPro HERO5 camera. For GoPro HERO4 and HERO3+ Black cameras, please use our Blink product. If you don't need upload, use HERO5, 6 or 7.
|
Camera |
Compatibility ( Y / N ) |
|
HERO6/7/8 Black |
Trigger only, no Upload |
|
HERO 2018 |
✘ |
|
HERO5 Black |
✔ |
|
HERO5 Session |
✘ |
|
HERO4 Black |
✘ |
|
HERO4 Silver |
✘ |
|
HERO4 Session |
✘ |
|
HERO (2014) |
✘ |
|
HERO3+ Black |
✘ |
|
HERO3+ Silver |
✘ |
|
HERO3 Black |
✘ |
|
HERO3 Silver |
✘ |
|
HERO3 White |
✘ |
|
HERO2 |
✘ |
|
HERO |
✘ |
Is there a video for the UpBlink setup process?
Below is a full setup video for UpBlink with our outdoor enclosures. You can also view other helpful instructional videos in the “Support” section.
How does UpBlink connect to the internet?
UpBlink can receive the internet signal from either a 2.4GHz WiFi network or from a "USB Ethernet device" connected to the USB-A port of UpBlink. The internet information is entered into the Upload Schedule in the UpBlink web UI.
If using a USB modem, plug the compatible modem into the USB-A port of UpBlink (see below). If the USB modem connects as an "Ethernet device", select "Internet via USB" in the UpBlink web UI. If the USB modem broadcasts a WiFi hotspot, select "WiFi (Standard)" in the UpBlink web UI then enter the WiFi details of the hotspot.
How is the USB hotspot powered?
UpBlink can control power to the hotspot via the USB-A port incorporated, therefore only turning on the hotspot when upload is scheduled to conserve power. A USB modem with an internal battery should not be powered from UpBlink's port since the modem's battery will only charge when an upload schedule is active. We have some suggested hotspots listed here but generally any 3G or 4G USB stick hotspot that creates a wifi network will work.
What USB hotspots do you recommend?
Please refer to the UpBlink manual here for the latest modem listing.
Any USB powered hotspot that plugs into a USB-A port for power (with no internal battery) and creates a local WiFi network should be suitable, however, there are some hotspots that are very power hungry and will not work such as the 'Jetpack' series of modems. UpBlink connects via WiFi to the hotspot to then upload footage.
There are many hotspots available in different parts of the world and there are different models being released all the time. We would love to hear which USB wifi hotspot you have used successfully.
WiFi hotspots with an internal battery that can be removed may be suitable, but you will have to test if the hotspot automatically turns on, when powered via the hotpot's USB charging port. This is because UpBlink turns power off to the hotspot between upload intervals to save power.
Can UpBlink connect to the internet from an Ethernet cable?
UpBlink does not have an Ethernet port to directly connect the cable. However, a USB to Ethernet adapter can be used to provide an internet signal from an Ethernet cable via UpBlink's USB port.
Does someone require a subscription to use the file upload feature (in addition to unit purchase?)
Yes, CloudX Pro.
What is the benefit to buying UpBlink?
UpBlink with CloudX Pro provides status email notifications + image upload. Images can be viewed through the CloudX Pro web portal.
Is UpBlink compatible with the GoPro Plus upload feature?
No. The following link outlines the options available for downloading footage from the GoPro camera during a time lapse when using our UpBlink time lapse controller: https://cam-do.com/pages/how-to-download-your-gopro-time-lapse-footage-with-UpBlink
What are the dimensions of UpBlink?
UpBlink measures 85x50x22mm (3.3"x1.9"x0.85").
Can I have a time lapse and motion detection simultaneously?
Yes, UpBlink allows for multiple schedules to be active at a time.
What happens if there is a conflict between schedules?
If multiple schedules have been set and there is a conflict between the camera triggering time, priority is given to the lower numbered schedule. For example, schedule 1 has priority over schedule 2. While a schedule with a set duration is active, such as a video recording, any other schedule that is set to trigger will be skipped until the active schedule is complete.
How does UpBlink attach to the GoPro HERO5?
Unlike the HERO4 cameras, the HERO5 camera does not use a 30 pin connector on the back. Instead, the HERO5 uses a USB-C connection on the side of the camera. UpBlink is approximately the same height and width as the HERO5, and is designed to accommodate straps to attach to the camera or to our enclosures.
What housings does CamDo offer that have space for UpBlink and external battery packs?
UpBlink is typically used with our DryX and SolarX Outdoor Weatherproof Enclosures. These enclosures have space to house extra batteries and come with two power options, a 9Watt solar panel, or without a solar panel that is normally used for shorter deployments, when you can return regularly to recharge the batteries or if you have a permanent power supply available. The Outdoor Enclosures have space to fit up to two of our V50 battery packs.
How long will the battery last if I shoot some number of photos per hour?
Calculating battery life is non-trivial. It depends on the camera model, firmware version, SD card speed, lighting conditions, battery size, age of the battery, ambient temperature, and more. To help you understand the issues and to calculate estimated battery life, consult the Camera Power Consumption Study and our Time Lapse Calculator.
If I know approximately how long my project is, how do I determine the ideal interval between triggers?
The ideal shooting interval is normally determined by the length of the final time lapse video clip, capacity of the SD card or battery capacity available. Our Time Lapse Calculator can be used to help determine the ideal interval between photos as determined by these variables.
Why is "Always On" mode for batteries important?
Since UpBlink turns the camera off between triggers to conserve power, Always On mode is important to prevent the battery from automatically turning off due to periods of inactivity. Most of the USB battery packs on the market have an automatic power saving feature which turns off the battery if the battery is not constantly supplying power to a device. If the GoPro is turned off for more than a few minutes between triggers, the external battery might automatically shutdown due to inactivity. Our V50 has Auto Always On mode. The Always On mode prevents the battery from automatically turning off when insufficient current is being drawn due to the camera being turned off by UpBlink to conserve power.
Does UpBlink retain the shooting schedule when power is removed or lost?
When all power is removed, UpBlink will retain the programmed shooting schedule as well as the clock time and date settings. When power is restored to UpBlink, it will resume the programmed shooting schedules.
Can I switch the SD card in the middle of a time lapse schedule?
Yes, the SD card is "hot swappable". If an interval occurs when the SD card is out of the GoPro, UpBlink will continue the shooting schedule by triggering the camera to turn on and off, however, no image will be taken since there is no SD card to save the image to.
How do I change UpBlink's shooting schedule in the middle of a project?
UpBlink's WiFi signal can be turned on or off by pressing the on-board WiFi button for 3seconds. UpBlink's WiFi only remains active for 15 minutes to program the new settings before the WiFi is automatically turned off to conserve power. If the camera is not easily accessible, we offer a Wired Remote that can be attached to UpBlink's 2.5mm Port1 for re-triggering the WiFi signal, as well as 2.5mm Extension Cables if a longer distance trigger is needed.
What can I connect to the circular jacks on my UpBlink?
Please connect only CamDo-approved accessories to these jacks unless you are experienced. Do not connect other equipment, especially voltage sources such as your solar panel or battery, to these jacks. Doing so could damage your UpBlink or camera.
Port1 on UpBlink can be used to activate UpBlink's WiFi signal using a wired remote (purchased separately).
UpBlink's Port2 is used for Motion Detection operation and information about this port is located in our Blink User Manual.
Please read our series of blog posts to understand how to connect custom hardware or interface a microcontroller such as an Arduino or Raspberry Pi.
Does UpBlink work with your Battery Eliminators?
UpBlink does not require a Battery Eliminator and it is not compatible with our Battery Eliminators which are for earlier generation cameras.
What does UpBlink weigh?
UpBlink weighs about 19g. This compares to a GoPro HERO5 Black camera at 117g.
General support can be found on our Support pages here.
How to set-up your UpBlink controller
Also read the FAQ's tab for more information.
$57.00 USD
CloudX is a state of the art online time lapse platform, allowing you to monitor your time lapse camera remotely.
If you have purchased the CamDo UpBlink, BlinkX or Blink scheduler/controller, you can login for remote status monitoring of your devices. View a list of heartbeat status for each day confirming:
There is also flexibility in setting up multiple email addresses and a schedule of how often the daily status information should be emailed to you.
In order to use this feature, UpBlink, BlinkX or Blink must be near a WiFi access point with an internet connection(either an open WiFi network or WPA secure network - WEP secure networks are older technology and not supported).
If you have purchased UpBlink, you can also upload your images to CloudX and get updated time lapse videos automatically created!
With every purchase of a compatible CamDo product (UpBlink, BlinkX or Blink), you get two weeks free access to CloudX.
All you need to do is enter your details into the user interface for your particular product (see the instructions for how to do this on our support pages here) and your free account will be automatically created. You will then automatically receive an email with your account details and how to login.
For continued access, CloudX requires a subscription. If you need to deploy on your own servers, we offer an FTP license option. The options, features and pricing are as follows:
Two weeks free is included with all compatible CamDo products so you can try it out. For the 12 month Pro Plan, get 12 months access and only pay for 11 months.
|
Feature/Pricing |
Trial Period |
Lite |
Pro |
Pro Plus | FTP |
|
Status Heartbeat |
Unlimited |
1 per day |
Unlimited |
Unlimited | Unlimited (via uploaded status text file) |
|
UpBlink, BlinkX or Blink compatible |
Blink BlinkX UpBlink |
Blink |
UpBlink only |
UpBlink only |
UpBlink only |
|
|
Unlimited |
Unlimited |
Unlimited |
Unlimited | ✘ |
|
Image Upload per Day |
✘ |
Unlimited |
Unlimited | Unlimited | |
| Cloud Storage | 15 GB storage | Status history only | 15 GB storage | 100 GB storage | By customer |
| Automatic Time Lapse Creation | ✔ | ✘ | ✔ | ✔ | ✘ |
| Review schedules remotely | Coming soon | Coming soon | Coming soon | Coming soon | Coming soon |
| Update schedules remotely | Coming soon | ✘ | Coming soon | Coming soon | Coming soon |
| 1 Month Access | 2 weeks free | $19 | $49 | $89 | n/a |
| 3 Months Access | $57 | $147 | $267 | n/a | |
| 12 Months Access | $209 | $539 | $979 | n/a | |
| One off purchase | n/a | n/a | n/a | n/a | $799 |
If you need enterprise pricing, more frequent uploads or larger storage, please contact sales@cam-do.com for pricing.
The platform is compatible with CamDo's UpBlink, BlinkX and Blink using GoPro cameras:
Compatibility with devices is as follows:
|
Device |
CloudX Lite |
CloudX Pro and Pro Plus |
FTP |
|
UpBlink, BlinkX or Blink compatible |
Blink |
UpBlink only |
UpBlink only |
BlinkX and Blink - time-lapse controllers for GoPro cameras.
Additional features we are working on:
|
Camera |
CloudX Heartbeat |
CloudX Upload |
| ✔ | ✔ | |
|
(discontinued) |
✔ | ✘ |
| ✔ | ✘ | |
|
UpShot |
coming soon | coming soon |
Will Blink/BlinkX ever have the upload feature?
No, however, the new product UpBlink does!
Can I change the settings of the camera remotely?
No, only update the firmware. This is something we are working on.
General support can be found on our Support pages here.
Also read the FAQ's tab for more information.
Product Codes: Lite - SCS05 (3month) / SCS09 (12 months)
Pro - SCS07 (3month) / SCS08 (12months)
$995.00 USD
Our Solar Enclosures use a 9 Watt solar panel to recharge the included V50 battery. If your installation is in a particularly cloudy or rainy area we also have an 18W upgrade option for additional peace of mind.
Our outdoor enclosure is fitted with a sturdy aluminum mounting bracket that contains multiple ¼"-20 threaded holes on the top, back, and bottom for use with standard tripod screws. It also has 2 slots at the back for using straps to attach the enclosure to a pole. The solar panel is removable and attached to the top of the enclosure using a dual ball socket arm so it can be positioned for optimum sun exposure. The solar panel charges the included Lithium Polymer battery which outputs 5 volts to power the camera or other accessories in a weatherproof enclosure.
We also offer a sturdy swivel mount for easy mounting to a pole or flat surface, check out the product page here.
The enclosures are designed to be crushproof and dust tight. Inside the weather resistant enclosure contains an aluminum bracket designed to hold the GoPro camera, and CamDo Blink Time Lapse Controller. It is possible to access the SD card, or USB connector without removing the camera. If the camera needs to be replaced, the fit is extraordinarily tight, guaranteeing that the camera will be in the exact same position as before so there is no disruption to your time lapse footage positioning. The interior has space for extra batteries or other accessories such as our Motion Detector. The enclosure is fitted with a standard 67mm filter adapter and a neutral density UV optical glass “digital filter” is included. You can replace the filter with your filter of choice.
We also offer complete packs of equipment. Check out our packs page here.
Our case has several mounting options for different situations. There are two ¼” locking holes, one on each side of the case, through which a padlock, bolts, or threaded rods can be used to secure the contents of the box.
There are 2 slots on the back of the aluminum mounting bracket which allow it to be easily attached to a pole or structure using straps such as hose clamps or zip ties. The tripod screw holes at the back of the bracket can then be used to angle the camera.
We also offer a high quality swivel mount bracket that can be added to your system which allows fantastic aiming flexibility. Read more here.
The aluminum mounting bracket has multiple tripod screw holes on the top, back, and bottom that can be used with any standard photographic tripod or mounting bracket with a normal tripod thread (¼"-20). ¼"-20 bolts are easily obtained from any hardware store if you are making your own mount. There are hundreds of different compatible mounting brackets and magic arm brackets.
9 Watt Solar Panel
If your installation is in a particularly cloudy or rainy area we also have an 18W upgrade option.
|
Camera |
Compatibility ( Y / N ) |
|
HERO7 Black |
✔ |
|
HERO6 Black |
✔ |
|
HERO5 Black |
✔ |
|
HERO5 Session |
✔ |
|
HERO4 Black |
✔ |
|
HERO4 Silver |
✔ |
|
HERO4 Session |
✔ |
|
HERO (2014) |
✘ |
|
HERO3+ Black |
✔ |
|
HERO3+ Silver |
✔ |
|
HERO3 Black |
✔ |
|
HERO3 Silver |
✔ |
|
HERO3 White |
✔ |
|
HERO2 |
✘ |
|
HERO |
✘ |
Compatible with the GoPro HERO3, HERO3+, HERO4, HERO5 and Session cameras.
Which CamDo Solar System is right for my GoPro camera?
Our SolarX Enclosures are compatible with GoPro HERO3, HERO3+, HERO4, HERO5 and Session cameras. Refer Compatibility tab.
How do I setup my system?
View the Solar Power System set-up guide here.
How long does it take to charge the battery?
In direct sun, the V15 (4,000 mAH Lithium Polymer battery) will fully charge in approximately 5.5 hours using the previous 6W solar panel model. Our newer systems use a 9W solar panel option which can charge the included V50 battery typically in a day. Where it is particularly cloudy/rainy, we recommend our 18W upgrade option. The battery system incorporates protection against overcharging, over discharge, over current (short circuit), unusual voltage input, and temperature extremes.
Will the solar panel be able to keep my time lapse running indefinitely?
This would depend on the shooting cycle used and the sun exposure available in your location. We advise all customers to calculate their battery needs due to the many variables. We have a Time Lapse Calculator that can be used to help determine your ideal shooting interval and how long your battery should theoretically last using our controller boards and batteries. The Calculator also gives the rate at which the solar panel should be able to recharge your battery at your given location and with the panel angle that is used. Keep in mind that temperature, battery fatigue, and other electrical inefficiencies will prevent the camera from using the full battery capacity.
What is the original dust and water ingress rating of your enclosures? Can I submerge your SolarX or DryX enclosures?
The enclosures have an IP67 rating prior to installation of CamDo accessories. Our SolarX and DryX enclosures are not meant to be immersed in water.
How long will the battery last before it is discharged?
It depends on many factors including your latitude, the amount of sun and cloud during your shoot, the controller you are using, the camera you are using and the shooting schedule you have programmed. There are too many variables to give a perfect answer but we have created a Time Lapse Calculator to work out the best setup for your shoot in your location.
This uses our analysis of the power consumption of the various GoPro cameras and provides an explanation of how to calculate the theoretical battery life.
Practically, we have run the system indefinitely taking one picture every 15 minutes with the WiFi on, in Canada in the summer.
Why is "Always On" mode for batteries important?
Since our controllers turn the camera off between triggers to conserve power, Always On mode is important to prevent the battery from automatically turning off. Most of the USB battery packs on the market have an automatic power saving feature which turns off the battery if the battery is not constantly supplying power to a device. If the GoPro is powered off for more than a few minutes between triggers, the external battery might automatically shutdown due to inactivity. However, our V15 batteries have two modes of operation, the standard Auto Off mode and an Always On mode, while the V50 is automatically in Always On mode when a USB cable is connected. The Always On mode prevents the battery from automatically turning off when very low current is being drawn due to the camera being powered off between triggers.
Refer to our support page here to make sure you are in "Always On" mode when setting up your system. Refer Step 2 of the guide.
Make sure to disconnect the battery from all devices to check this. If you hold down the power button for at least six seconds and the charge indicator flashes 3 times and stays lit for a second or two, you are now in Always On mode. If you hold down the power button for six seconds and the charge indicator flashes 3 times and then goes dark straight away, you are in Auto Off mode.
How can I avoid condensation on the lens?
Our enclosures have an integrated auto-pressure valve that equalizes the atmospheric pressure difference to reduce condensation. The IP67 micro vent allows air to pass through while preventing water from entering. If you need additional protection against condensation, the extra space in the solar enclosure allows for one or more sacks of desiccant to be inserted in the box. For even more protection, there are some products available to coat the lens, such as those used on ski-goggles. The standard 67mm threaded lens filter can also be replaced with another 67mm threaded lens that already has anti-fog characteristics or coating.
TIP: Condensation is a result of humid air being sealed in the box when you close it and condensing when there is a temperature change. Try to close the box in as dry an environment as possible. If you need additional protection against condensation, the extra space in the solar enclosure allows for one or more sacks of desiccant to be inserted in the box. For more information, Google for avoiding condensation in underwater cameras, where the problem is discussed at length by many experienced photographers.
Can I lock the case?
There are two ¼” locking holes, one on each side of the case, through which padlocks, bolts, or threaded rods can be used to secure the contents of the box.
Is it possible to separate the solar panel from the box?
Yes. The solar panel is removable and has a 4ft charging cable that enters the enclosure through a waterproof cable gland at the bottom of the enclosure.
Can I mount the solar panel remotely from the enclosure?
Yes. However, if you need to place the panel remotely from the enclosure, attention must be paid to the gauge of wire used to connect the solar panel to the battery. The connectors on the solar panel cable are 3.5mm outer diameter, 1.1mm inner diameter barrel power connectors. So you'll need one end male (M3.5x1.1), the other one end female (F3.5x1.1). A local electronics store will have these connectors. We recommend using the largest cable that can physically fit into the particular connector you source to minimize voltage drop from the panel to the battery. The voltage drop must not exceed 0.5 volts. A 16 AWG or larger wire is recommended for distances exceeding a few feet.
Alternative 1" ball mount accessories such as our Tough Claw can be used to mount the solar panel away from the enclosure using the sturdy dual ball socket system.
Which cables and adapters come with the system and what do I use to connect the battery to the solar panel?
The system comes with all necessary cables used to charge the included V50 battery. The right-angle solar barrel to microUSB adapter is used to charge the V50 from the solar panel cable.
Refer to Our Solar Setup Guide.
Can I use this system to charge other devices as well?
Absolutely. The V50 battery pack can be used to charge any 5V device.
Can your systems be used for other purposes than GoPro cameras?
Yes. You can remove the GoPro mounting fixture to provide extra space for your equipment. The solar panel, battery, and enclosure can be used for your custom system or just used as a remote charging station for phones and other USB chargeable devices.
Does the enclosure O-Ring seal require special care?
The case is equipped with a hollow core EPDM gasket that has been designed to give superior performance and resist compressive deformation over time. To ensure a watertight seal, the gasket must be free of cuts, abrasions or tears. Debris or foreign material caught between the sealing rib on the bottom of the case and the gasket on the top of the case will prevent the case from sealing properly. A coat of an automotive type surface protector is recommended to help prevent dirt and debris from sticking to the seal. If the seal becomes damaged a replacement seal can be ordered from Cam-Do.com.
Special care should be taken to ensure that wires or cables do not get trapped in the door when it is closed. The power-claw latches can exert extreme force, resulting in damage to the cable and the O-ring seal.
General support can be found on our Support pages here.
The CamDo Blink, BlinkX, or UpBlink controller boards are typically used with our Solar Enclosures to provide programming flexibility while significantly reducing power consumption. Information on these controllers can be found on the following pages:
UpBlink
BlinkX
Blink
Also, read the FAQ's tab for more information.
Product Code: HDR03 + PSP01
$635.00 USD
Our tough, weatherproof† dry enclosures are designed to be crush proof, air tight, UV resistant and built to survive in a hostile environment.
The DryX enclosure is the same enclosure that ships with our SolarX Enclosure Power System but does not include a battery pack or solar panel. Our outdoor enclosures are fitted with a sturdy aluminum mounting bracket that contains multiple 1/4"-20 threaded holes on the top, back, and bottom for use with standard tripod screws. It also has 2 slots at the back for using straps to attach the enclosure to a pole.
We also offer a sturdy swivel mount for easy mounting to a pole or flat surface, check out the product page here.
Inside the enclosure contains an aluminum bracket designed to tightly fit the GoPro HERO7/6/5/4/3 and HERO5 Session cameras with a CamDo time lapse camera controller such as BlinkX. The interior has space for extra batteries or other accessories. One accessory that can be used with BlinkX or Blink is our X-Band Motion Sensor that can detect motion through the walls of the enclosure without requiring extra opening for the signal to pass through. The enclosure is fitted with a standard 67mm filter adapter and a neutral density UV optical glass “digital filter” is included. You can replace the filter with your filter of choice.
† These enclosures are not submersible. The degree of water resistance depends on the mounting method and options selected. They are suitable for general outdoor use.
Our case has several mounting options for different situations. There are two ¼” locking holes, one on each side of the case, through which a padlock, bolts, or threaded rods can be used to secure the contents of the box.
There are 2 slots on the back of the aluminum mounting bracket which allow it to be easily attached to a pole or structure using straps such as hose clamps or zip ties. The tripod screw holes at the back of the bracket can then be used to angle the camera.
We also offer a high quality swivel mount bracket that can be added to your system which allows fantastic aiming flexibility. Read more here.
The aluminum mounting bracket has multiple tripod screw holes on the top, back and bottom that can be used with any standard photographic tripod or mounting bracket with a normal tripod thread (1/4" x 20). 1/4 x 20 bolts are easily obtained from any hardware store if you are making your own mount. There are hundreds of different compatible mounting brackets and magic arm brackets.
|
Camera |
Compatibility ( Y / N ) |
| HERO7 | ✔ |
|
HERO6 |
✔ |
|
HERO5 Black |
✔ |
|
HERO5 Session |
✔ |
|
HERO4 Black |
✔ |
|
HERO4 Silver |
✔ |
|
HERO4 Session |
✔ |
|
HERO (2014) |
✘ |
|
HERO3+ Black |
✔ |
|
HERO3+ Silver |
✔ |
|
HERO3 Black |
✔ |
|
HERO3 Silver |
✔ |
|
HERO3 White |
✔ |
|
HERO2 |
✘ |
|
HERO |
✘ |
Compatible with the GoPro HERO7/6/5/4/3 and HERO5 Session cameras and CamDo Solutions products.
Is there a video for the DryX setup process?
Below is a setup video for DryX enclosures. You can also view other helpful instructional videos in the “Support” section.
Can the DryX enclosure be powered by mains power?
Yes. The DryX enclosure has a removable plug at the bottom that provides a 3/4" (19mm) hole to allow AC power or other cabling to enter the enclosure. A 5V 2A USB wall adapter can be used to power the camera system inside the enclosure.
If you would like more power reliability in case of power outages, the DryX enclosure has space to house our V50 batteries that can be used as an Uninterruptible Power Supply because they can supply power while charging and be used in an "Always On" mode.
How many battery packs can fit inside the DryX Enclosure?
The DryX enclosure can fit up to two V50 battery packs that both have the Always On mode that is required for long term deployment using our controller boards.
Why is "Always On" mode for batteries important?
Since our controllers turn the camera off between triggers to conserve power, Always On mode is important to prevent the battery from automatically turning off. Most of the USB battery packs on the market have an automatic power saving feature which turns off the battery if the battery is not constantly supplying power to a device. If the GoPro is powered off for more than a few minutes between triggers, the external battery might automatically shutdown due to inactivity. The V50 is automatically in Always On mode when a USB cable is connected. The Always On mode prevents the battery from automatically turning off when very low current is being drawn due to the camera being powered off between triggers.
How long will the battery last before it is discharged?
It depends on many factors including the outside temperature, the age of your battery, controller you are using, the camera you are using and the shooting schedule you have programmed. There are too many variables to give a perfect answer, but if you are taking time lapse images, we have created a Time Lapse Calculator that can be used to help determine how long your battery should theoretically last using our controller boards. The calculator can also be used to determine your ideal shooting interval based on the length of the project and final video clip length you are trying to achieve.
This uses our analysis of the power consumption of the various GoPro cameras and provides an explanation of how to calculate the theoretical battery life.
How can I avoid condensation on the lens?
Our enclosures have an integrated auto-pressure valve that equalizes the atmospheric pressure difference to reduce condensation. The IP67 micro vent allows air to pass through while preventing water from entering. If you need additional protection against condensation, the extra space in the solar enclosure allows for one or more sacks of desiccant to be inserted in the box. For even more protection, there are some products available to coat the lens, such as those used on ski-goggles. The standard 67mm threaded lens filter can also be replaced with another 67mm threaded lens that already has anti-fog characteristics or coating.
TIP: Condensation is a result of humid air being sealed in the box when you close it and condensing when there is a temperature change. Try to close the box in as dry an environment as possible. If you need additional protection against condensation, the extra space in the solar enclosure allows for one or more sacks of desiccant to be inserted in the box. For more information, Google for avoiding condensation in underwater cameras, where the problem is discussed at length by many experienced photographers.
Can I lock the case?
Yes. There are two ¼” locking holes, one on each side of the case, through which padlocks, bolts, or threaded rods can be used to secure the contents of the box.
What is the original dust and water ingress rating of your enclosures? Can I submerge your SolarX or DryX enclosures?
The enclosures have an IP67 rating prior to installation of CamDo accessories. Our SolarX and DryX enclosures are not designed to be immersed in water.
Does the enclosure O-Ring seal require special care?
The case is equipped with a hollow core EPDM gasket that has been designed to give superior performance and resist compressive deformation over time. To ensure a watertight seal, the gasket must be free of cuts, abrasions or tears. Debris or foreign material caught between the sealing rib on the bottom of the case and the gasket on the top of the case will prevent the case from sealing properly. A coat of an automotive type surface protector is recommended to help prevent dirt and debris from sticking to the seal. If the seal becomes damaged a replacement seal can be ordered from Cam-Do.com.
Special care should be taken to ensure that wires or cables do not get trapped in the door when it is closed. The power-claw latches can exert extreme force, resulting in damage to the cable and the O-ring seal.
General support can be found on our Support pages here.
The CamDo Blink, BlinkX, or UpBlink controller boards are typically used with our DryX Enclosures to provide programming flexibility while significantly reducing power consumption. Information on these controllers can be found on the following pages:
UpBlink
BlinkX
Blink
Also, read the FAQ's tab for more information.
Product Code: with V50 - HDR05
$179.00 USD
The marine grade aluminum swivel mount kit consists of a 6" long straight swing arm on a vertical mounting base for attachment to a flat or rounded surface such as a wall or post. The opposing end is a ball socket used with the 1.5" ball mount plate that can be attached to our SolarX or DryX outdoor enclosure for ultimate aiming flexibility.
The swing arm pivot allows for full 360-degree rotation and the ball and socket system allows a 360-degree rotation with a 180-degree pivot.
There is an insert on the vertical mounting plate to allow solid mounting to a flat surface like a building or a rounded surface such as a pole or rail.
Included in the kit:
The mount is the perfect complement to our SolarX and DryX outdoor enclosures and is included as an option with our Construction Time Lapse kits.
Product Code: MSM01
$360.00 USD
The Solar Kit adds an extra 9W solar panel to give you a total of 18W of power (2 x 9W panels) when using DryX/SolarX. It comes with all necessary attachments (ball arm, socket) and wiring to get up and running in no time with your existing DryX/SolarX.
The SolarX outdoor enclosure is fitted with a sturdy aluminum mounting bracket that contains multiple ¼"-20 threaded holes on the top, back, and bottom for use with standard tripod screws. Each solar panel is simply attached to this bracket using the included ¼"-20 ball mount and associated socket arm so the panel can be positioned for optimum sun exposure.
The 9W Solar Panel Kit includes a "(2Fx1M) Y-cable" that can be used to connect two solar panels to simultaneously charge a single V50 (included with SolarX). Alternatively, our outdoor housings can fit two V50 battery packs that can each be charged from a separate solar panel. So if one panel gets dirty or covered by shadow, the second panel will continue to work hard for your project.
Note, the outdoor enclosure is NOT included. Please see our SolarX product page.
9 Watt Solar Panel
For battery and enclosure specifications, please see our SolarX product page.
The 9Watt Solar Panel Kit is only compatible with our DryX and SolarX Enclosures that have a aluminum mounting bracket and cable gland entry (product codes HSO04 or HDR03). It is not compatible with previous versions. The Solar Panel cannot be connected directly the camera or UpBlink. The solar panel does NOT output a regulated 5Volts and is used to charge our V50 battery pack.
|
Solar System |
Compatibility ( Y / N ) |
|
SolarX (HSO04) |
✔ |
|
DryX with V50 (HDR05) |
✔ |
|
Previous Solar systems |
✘ |
Which CamDo Solar System is compatible with the SolarX-18W upgrade?
The SolarX-18W upgrade is only compatible with the SolarX system. It is not compatible with previous versions. Refer Compatibility tab.
How do I setup my system?
View the Solar Power System set-up guide here.
Will the solar panel be able to keep my time lapse running indefinitely?
This would depend on the shooting cycle used and the sun exposure available in your location. We advise all customers to calculate their battery needs due to the many variables. We have a Time Lapse Calculator that can be used to help determine your ideal shooting interval and how long your battery should theoretically last using our controller boards and batteries. The Calculator also gives the rate at which the solar panel should be able to recharge your battery at your given location and with the panel angle that is used. Keep in mind that temperature, battery fatigue, and other electrical inefficiencies will prevent the camera from using the full battery capacity.
How long will the battery last before it is discharged?
It depends on many factors including your latitude, the amount of sun and cloud during your shoot, the controller you are using, the camera you are using and the shooting schedule you have programmed. There are too many variables to give a perfect answer but we have created a Time Lapse Calculator to work out the best setup for your shoot in your location.
This uses our analysis of the power consumption of the various GoPro cameras and provides an explanation of how to calculate the theoretical battery life.
Practically, we have run the system indefinitely taking one picture every 15 minutes with the WiFi on, in Canada in the summer.
General support can be found on our Support pages here.
The CamDo UpBlink controller boards are typically used with our Solar Enclosures to provide programming flexibility while significantly reducing power consumption. Information on these controllers can be found on the following pages:
UpBlink
BlinkX
Blink
Also, read the FAQ's tab for more information.
Product Code: PSP01
$56.00 USD
Product Code: ASD03
The SanDisk Extreme 64GB microSDXC Memory Card from is A2 and U3 rated to provide a minimum write transfer rate above 30MB/s (U3 rated SD cards are required for use with GoPro cameras). This SD card is supplied with a "full sized SD" card adapter for high-speed file transfer to your computer via an SD card port.
$399.00 USD
CamDo Product Code: OGP14
GoPro Product Code: CHDHX-701
Features 4K60, 2.7K120 and 1080p240 video, 12MP photos up to 30 frames per second, built-in Wi-Fi and Bluetooth®, and Protune™ for photos and video. Waterproof to 33’ (10m).
What's Included:
High-definition video recording
With resolutions of 4K60, 2.7K120, and 1080p240 for crisp, smooth footage.
Ultrawide-angle glass lens
Captures an expansive field of view for stunning videos and photos. Ultrawide, medium and narrow field-of-view options allow you to select your perspective.
Protune
Offers cinema-quality capture of photos and videos, as well as manual control over color, ISO limit, exposure and other settings. HiLight Tag makes it easy to identify video highlights to simplify playback, editing and sharing.
Night Photo and Night Lapse
Enable customization of exposure settings for nighttime time lapse photos. Auto low-light setting adjusts frame rates to optimize performance in low-light conditions.
12.0MP still image resolution
Allows you to take stunning photographs. Burst shooting up to 30 fps.
QuikCapture
Allows you to turn the camera on and begin recording with the push of a single button. SuperView lets you record video with an immersive field of view.
Time Lapse mode
Allows you to capture long term time lapse footage with BlinkX.
Auto image rotation
Helps simplify setup.
Waterproof Camera
The camera is waterproof rated for use at depths of up to 33' without an additional housing, so you can capture your underwater adventures in stunning high-definition.
Wearable, mountable design
Ensures flexible recording options and compatibility with most GoPro mounts (curved and flat adhesive mounts included).
Built-in microphone
Records crisp, clear sound with minimal distortion and a high dynamic range.
microSD slot
Supports select cards for expansive storage capabilities (card not included).
Rechargeable battery
Enables extended recording.
Built-in Wi-Fi and Bluetooth
Offer enhanced connectivity to the GoPro app (download required), as well as a range of accessories (not included).|
Warranty Terms - Parts |
1 year limited |
Memory Card Compatibility |
microSD |
|
Warranty Terms - Labor |
1 year limited |
Memory Card Included |
No |
|
Height |
1.7 inches |
Number Of Batteries Required |
1 |
|
Width |
2.4 inches |
Touch Screen |
Yes |
|
Depth |
0.9 inches |
Tripod/Monopod Mountable |
Yes |
|
Weight |
4.2 ounces |
Water Resistant |
Yes |
|
Digital Zoom |
None |
Wi-Fi Built-in |
Yes |
|
Effective Megapixels |
12 megapixels |
Maximum Depth Of Water Resistance |
33 feet |
|
Max Resolution |
4K |
Digital Memory Format |
Flash Memory |
|
Image Stabilization |
Yes |
High Definition |
Yes |
|
Temperature |
0C to 51C | <--- may operate below 0C |
Get Started With GoPro
Learn about the GoPro App, download GoPro software and more. Get started >
Quick Start Guide
Want to jump right in? Learn the basics of capturing incredible photos and videos with your GoPro. Download Now >
HERO7 Black User Manual
Learn how to use your GoPro product, and get all the info you'll need here. View User Manual >
$399.00 USD
CamDo Product Code: OGP11
GoPro Product Code: CHDHX-501
Cameras available in our construction time lapse packs
Features 4K30, 2.7K60 and 1080p120 video, 12MP photos up to 30 frames per second, built-in Wi-Fi and Bluetooth®, and Protune™ for photos and video. Waterproof to 33’ (10m).
What's Included:
High-definition video recording
With resolutions of 4K30, 2.7K60, 1080p120 and 720p240 for crisp, smooth footage.
Ultrawide-angle glass lens
Captures an expansive field of view for stunning videos and photos. Ultrawide, medium and narrow field-of-view options allow you to select your perspective.
Protune
Offers cinema-quality capture of photos and videos, as well as manual control over color, ISO limit, exposure and other settings. HiLight Tag makes it easy to identify video highlights to simplify playback, editing and sharing.
Night Photo and Night Lapse
Enable customization of exposure settings for nighttime time lapse photos. Auto low-light setting adjusts frame rates to optimize performance in low-light conditions.
12MP still image resolution
Allows you to take stunning photographs. Burst shooting up to 30 fps.
QuikCapture
Allows you to turn the camera on and begin recording with the push of a single button. SuperView lets you record video with an immersive field of view.
Time Lapse mode
Allows you to capture long term time lapse footage with BlinkX.
Auto image rotation
Helps simplify setup.
Waterproof Camera
The camera is waterproof rated for use at depths of up to 33' without an additional housing, so you can capture your underwater adventures in stunning high-definition.
Wearable, mountable design
Ensures flexible recording options and compatibility with most GoPro mounts (curved and flat adhesive mounts included).
Built-in microphone
Records crisp, clear sound with minimal distortion and a high dynamic range.
microSD slot
Supports select cards for expansive storage capabilities (card not included).
Rechargeable battery
Enables extended recording.
Built-in Wi-Fi and Bluetooth
Offer enhanced connectivity to the GoPro app (download required), as well as a range of accessories (not included).|
Warranty Terms - Parts |
1 year limited |
Memory Card Compatibility |
microSD |
|
Warranty Terms - Labor |
1 year limited |
Memory Card Included |
No |
|
Height |
1.7 inches |
Number Of Batteries Required |
1 |
|
Width |
2.4 inches |
Touch Screen |
Yes |
|
Depth |
0.9 inches |
Tripod/Monopod Mountable |
Yes |
|
Weight |
4.2 ounces |
Water Resistant |
Yes |
|
Digital Zoom |
None |
Wi-Fi Built-in |
Yes |
|
Effective Megapixels |
12 megapixels |
Maximum Depth Of Water Resistance |
33 feet |
|
Max Resolution |
4K |
Digital Memory Format |
Flash Memory |
|
Image Stabilization |
Yes |
High Definition |
Yes |
|
Temperature |
0C to 51C | <--- may operate below 0C |
Get Started With GoPro
Learn about the GoPro App, download GoPro software and more. Get started >
Quick Start Guide
Want to jump right in? Learn the basics of capturing incredible photos and videos with your GoPro. Download Now >
HERO5 Black User Manual
Learn how to use your GoPro product, and get all the info you'll need here. View User Manual >
$139.00 USD
Under normal circumstances, the standard GoPro battery will last for one to two hours of shooting. Our UpBlink, BlinkX and Blink controllers can be programmed to turn the camera off between shots to only have the camera powered on when the footage is needed. However, while Blink can extend the length of time the GoPro cameras can be deployed on the internal GoPro battery, the total amount of time the camera can remain powered on is still the same. Our 47Wh battery increases the GoPro battery life by approximately 12x and has the Always On operating mode required for use with our UpBlink, BlinkX and Blink controllers.
Note: UpBlink and BlinkX requires an external power source and cannot be powered directly from the GoPro battery.
There are a lot of battery packs available, however, don't be fooled by cheaper alternatives. Most of the USB battery packs on the market have an automatic power saving feature which turns off the battery if it is not continuously supplying power. Often, this feature is not even mentioned in the battery description, and only discovered when you find the camera's internal battery is dead, even though the high powered battery pack is still fully charged.
Calculating battery life is non-trivial. It depends on the camera model, firmware version, SD card speed, lighting conditions, battery size, age of the battery, ambient temperature, and more. To help you understand the issues and to calculate estimated battery life, consult the Camera Power Consumption Study and our Time Lapse Calculator.
Up to two V50 / 47Wh battery packs fit in our Weather Resistant DryX/SolarX Outdoor Enclosures.
|
Camera |
Compatibility ( Y / N ) |
|
HERO5 Black |
✔* |
|
HERO5 Session |
✔* |
|
HERO4 Black |
✔ |
|
HERO4 Silver |
✔ |
|
HERO4 Session |
✔ |
|
HERO (2014) |
✔ |
|
HERO3+ Black |
✔ |
|
HERO3+ Silver |
✔ |
|
HERO3 Black |
✔ |
|
HERO3 Silver |
✔ |
|
HERO3 White |
✔ |
|
HERO2 |
✔ |
|
HERO |
✔ |
*Does not include USB-C cable
Compatible with 5V USB Devices.
How long will the battery last before it is discharged?
It depends on many factors: the controller you are using, the camera you are using and the shooting schedule you have programmed. There are just too many variables to give an accurate answer.
In theory, the 4,000 mAH V15 battery combined with the standard GoPro 1,050 mAH battery will give you about 5 times the shooting time.
The 12,800 mAH V50 battery combined with the standard GoPro 1,050 mAH battery should give you more than 12 times the shooting time.
An analysis of the power consumption of the various GoPro cameras and an explanation of how to calculate the theoretical battery life is outlined on the GoPro Power Consumption page. Our Time Lapse Calculator page can be used to assist you in planning the interval times of your time lapse project.
How can I tell when the battery is in Always On mode?
Unlike the V44 which was more complicated, all you need to do is plug your device into the V50 and the battery goes into Always On mode automatically.
General support can be found on our Support pages here.
Average GoPro recording times in each video setting (limited by battery capacity)
Also read the FAQ's tab for more information.
Product Code: BAT03
$315.00 USD
Use Blink to achieve long term time lapse or motion detection for your next project. Just plug it into your GoPro and use the Blink app to connect and configure up to 10 separate time lapse schedules using a smartphone, tablet, computer, or any WiFi enabled device which has a web browser (no cell service or internet connection required). For more information, see the Quick Start Guide and User Manual. Also check out our tutorial videos for a quick overview of the user interface.
A WiFi network with internet access is only required if you would like to use our optional Blink Email status feature to provide daily status updates.
If you are looking at a long term time lapse you may be interested in our construction time lapse packs which incorporate an external solar system for long term deployment or where finding a power supply is difficult or expensive.
Compatible with the GoPro HERO3+ Black and HERO4 Black/Silver cameras. Note - Blink may work with HERO3+ Silver cameras but is not officially supported by CamDo due to the general unreliability of the HERO3+ Silver cameras as they get older. Please use our Time Lapse Intervalometer for older camera models.
For GoPro HERO5 Black and HERO5 Session cameras, please use our BlinkX product.
|
Camera |
Compatibility ( Y / N ) |
|
HERO5 Black |
|
|
HERO5 Session |
|
|
HERO4 Black |
✔ |
|
HERO4 Silver |
✔ |
|
HERO4 Session |
✘ |
|
HERO (2014) |
✘ |
|
HERO3+ Black |
✔ |
|
HERO3+ Silver |
✘ |
|
HERO3 Black |
✘ |
|
HERO3 Silver |
✘ |
|
HERO3 White |
✘ |
|
HERO2 |
✘ |
|
HERO |
✘ |
Can I have a time lapse and motion detection simultaneously?
Yes, Blink allows for multiple schedules to be active at a time.
What happens if there is a conflict between schedules?
If multiple schedules have been set and there is a conflict between the camera triggering time, priority is given to the lower numbered schedule. For example, schedule 1 has priority over schedule 2. While a schedule with a set duration is active, such as a video recording, any other schedule that is set to trigger will be skipped until the active schedule is complete.
Does Blink fit inside the standard GoPro housings?
Yes, if housing external batteries is not an issue, Blink can be used with the GoPro Frame Mount or the extended backdoors included in the GoPro Back Door Kit that are designed to clip into the standard housing to provide space to fit GoPro BacPac accessories.
What housings does CamDo offer that have space for Blink and external battery packs?
Blink is typically used with our Outdoor Enclosures to also house extra batteries and come with two power options, a 9Watt solar panel, or without a solar panel that is normally used for shorter deployments, when you can return regularly to recharge the batteries. The Outdoor Enclosures have space to fit up to two of our V44 (44watt-hour) battery packs.
If you require a waterproof solution, our aluminum Deep underwater housing allows for use of Blink and the GoPro to a depth of 2000ft, while the DeepEXT housing extension can fit up to three V15 (15watt-hour) battery packs.
How long will the battery last if I shoot some number of photos per hour?
Calculating battery life is non-trivial. It depends on the camera model, firmware version, SD card speed, lighting conditions, battery size, age of the battery, ambient temperature, and more. To help you understand the issues and to calculate estimated battery life, consult the Camera Power Consumption Study and our Time Lapse Calculator.
If I know approximately how long my project is, how do I determine the ideal interval between triggers?
The ideal shooting interval is normally determined by the length of the final time lapse video clip, capacity of the SD card or battery capacity available. Our Time Lapse Calculator can be used to help determine the ideal interval between photos as determined by these variables.
Why is "Always On" mode for batteries important?
Since Blink turns the camera off between triggers to conserve power, Always On mode is important to prevent the battery from automatically turning off due to periods of inactivity. Most of the USB battery packs on the market have an automatic power saving feature which turns off the battery if the battery is not constantly supplying power to a device. If the GoPro is turned off for more than a few minutes between triggers, the external battery might automatically shutdown due to inactivity. However, our V15 and V44 have two modes of operation, the standard Auto Off mode and an Always On mode. The Always On mode prevents the battery from automatically turning off when insufficient current is being drawn due to the camera being turned off by Blink to conserve power.
Does Blink retain the shooting schedule when power is removed or lost?
When all power is removed, Blink will retain the programmed shooting schedule. However, Blink does not have an internal battery to retain the time and date settings. When power is restored to Blink, it will determine the clock time and date information from the GoPro camera.
Can I switch the SD card in the middle of a time lapse schedule?
Yes, the SD card is "hot swappable". If an interval occurs when the SD card is out of the GoPro, Blink will continue the shooting schedule by triggering the camera to turn on and off, however, no image will be taken since there is no SD card to save the image to.
How do I change Blink's shooting schedule in the middle of a project?
Blink's WiFi can be turned on or off by using the supplied push button remote plugged into the board's 2.5mm input. Blink's WiFi only remains active for 15 minutes to program the new settings before the WiFi is automatically turned off to conserve power. If the camera is not easily accessable, we offer 2.5mm Extension cables that can be left attached to Blink's 2.5mm port for re-triggering the WiFi signal.
Can I schedule a time lapse with an interval less than 60seconds between images?
Yes, shorter intervals can be achieved on the HERO4 camera by using the GoPro's native "time lapse video" setting to allow the capture of 0.5 , 1, 2, 5, 10, 30, and 60 seconds between images as explained here: https://cam-do.com/pages/blink-troubleshooting-guide#short-interval
What can I connect to the circular jacks on my Blink?
Blink's Port1 is used to activate the Blink's WiFi signal and is typically used with the included wired remote.
Blink's Port2 is used for Motion Detection operation and information about this port is located in our Blink User Manual.
Please connect only CamDo-approved accessories to these jacks unless you are experienced. Do not connect other equipment, especially voltage sources such as your solar panel or battery, to these jacks. Doing so could damage your BlinkX or camera.
Please read our series of blog posts to understand how to connect custom hardware or interface a microcontroller such as an Arduino or Raspberry Pi.
Does Blink work with your Battery Eliminators?
Blink is not compatible with our Battery Eliminators.
What does Blink weigh?
Blink weighs 19g. This compares to a GoPro camera at 87g plus the GoPro extended enclosure at 71g.
General support can be found on our Support pages here.
Also read the FAQ's tab for more information.
Product Code: CBL01
$169.00 USD
Motion detection can be used for security camera applications, wildlife photography, and for recording events where a person or other object, such as a car or truck, moves past the camera from time to time.
The X-Band Motion Sensor does not work underwater.
Our X-Band Motion Sensor is an active device powered by BlinkX/Blink’s 3.5mm Port2 connection, which bounces 10.5Ghz microwave signals to determine if motion has occurred. Microwaves do not rely on heat so the moving object does not need to be warm to trigger the sensor. Microwaves will also pass through glass and plastic, so the X-Band sensor can be mounted behind a window or inside an opaque waterproof box for use outdoors. The range of the X-Band sensor is adjustable from 8 to 30 feet (2-10m). Actual distances will depend on the environment and mounting configurations.
The X-Band Sensor is typically used with our durable weatherproof SolarX or DryX enclosures that have enough space to house the GoPro, BlinkX/Blink, Motion Sensor, and Battery Packs.
Blink and BlinkX are designed to extend the GoPro camera's battery life by turning the camera off between triggers and allows for motion detection triggering to be set on a scheduled active time to ensure footage is only captured when needed. In power saving mode, since the camera needs to power on before starting the recording, there is approximately a 5 second delay between when the Motion Sensor is triggered and when the recording starts or the picture is taken. Where power is less of a concern Blink has a "fast capture" mode (currently in Beta for firmware v2.00) where the camera will continue to stay on during the active motion detection schedule to reduce the activation time to less than 1 second. The camera will remain off when no motion detection schedule is active.
The X-Band Microwave Motion Sensor is an accessory that can be combined with Blink or BlinkX to trigger the GoPro camera when motion has occurred.
|
Camera |
Compatibility ( Y / N ) |
|
HERO5 Black |
✔ |
|
HERO5 Session |
✔ |
|
HERO4 Black |
✔ |
|
HERO4 Silver |
✔ |
|
HERO4 Session |
✘ |
|
HERO (2014) |
✘ |
|
HERO3+ Black |
✔ |
|
HERO3+ Silver |
✔ |
|
HERO3 Black |
✘ |
|
HERO3 Silver |
✘ |
|
HERO3 White |
✘ |
|
HERO2 |
✘ |
|
HERO |
✘ |
Do I require Blink or BlinkX to use the X-Band Motion Sensor?
Blink or BlinkX is required to use the X-Band Microwave Motion Sensor accessory to trigger the GoPro camera when motion is detected.
How does the Motion Detection video recording time work if motion is detected more than once in the interval?
If the video mode is selected in the Motion Detector interface of Blink/BlinkX, the camera will continue to record for the amount of time set in the Video recording menu once motion is no longer detected. If movement is detected before the recording time elapses, the recording interval will be reset to ensure you capture the entire motion event.
How does the X-Band detect motion?
The X-Band sensor uses doppler detection of microwaves bounced off the object and is triggered by motion towards or away from the sensor. Microwaves pass through opaque plastics and glass, but not metal. The moving object does not need to be warm to trigger the sensor.
Will the X-Band Sensor work underwater if contained in a waterproof housing?
No. The X-Band Sensor only works in air and will not work underwater.
Can I use more than one sensor with Blink or BlinkX simultaneously?
No. Blink and BlinkX detect pulse frequency from the X-Band Sensor, so only one sensor can be used at a time.
Does the controller board fit inside the standard waterproof case?
BlinkX does not fit into any of the standard GoPro housings. Blink fits in the extended BacPac backdoor attachments included in the GoPro Backdoor Kit and provided with the GoPro accessories such as the GoPro Dive Housing, GoPro LCD BacPac or the GoPro Battery BacPac. However, since the Motion Sensor plugs into the 3.5mm port on the bottom of Blink, a small hole needs to be drilled into the housing to allow the sensor’s wires to pass through the housing. X-Band detectors are normally used with our outdoor SolarX and DryX enclosures.
CamDo offers a series of Outdoor Weather Resistant Enclosures designed to house the GoPro camera, Blink, and Motion Sensor along with space for a high capacity battery and optional solar panel for longer term deployment. The X-Band detector fits inside the weather resistant case and does not require any hole in the case for installation of the X-Band Sensor.
Can a Blink or BlinkX motion detection schedule and time lapse schedules overlap?
Yes, the motion detection can be set on a schedule that overlaps with a time lapse schedule. If the camera enters a time lapse interval while camera is currently recording in motion detection mode, the time lapse image will be skipped. If the camera is currently taking a time lapse image when motion is detected, Blink will re-trigger the camera on the motion detection schedule after the camera has taken the time lapse photo and turned off.
I am a hacker. Can I use the ports on the Blink or BlinkX board to trigger the camera using other devices?
The motion detection Port2 of Blink and BlinkX can be programmed to accept an external input to trigger an action. Unlike the X-Band operation which requires a set amount of pulses within a certain timeframe, PIR/External mode only requires a pulse for more than 250ms to trigger the camera. See this blog post for more details.
I am a not a hacker. I have an idea for a project for our organization. Can you help?
Yes. Our controller boards were originally designed to handle custom projects we built for scientists and professional photographers. Our controllers are very flexible and can be reprogrammed to respond to different kinds of control inputs. Some controllers also have an output which can be used to control lighting, or give different types of feedback. Contact us for a quote for your application.
General support can be found on our Support pages here.
BlinkX
Blink
Average GoPro recording times in each video setting (limited by SD card capacity)
Also read the FAQ's tab for more information.
Product Code: ASX01
$179.00 USD $725.00 USD
We have limited stock of our our legacy GoPro BacPac Dive Housing model of the Underwater WiFi Extension Cable for use with the HERO3 and HERO4 cameras only. It must be used with the GoPro Dive Housing rated to a depth of 60m (196ft). Select the "H3/H4 only models in the dropdown". See more information on the legacy product here.
AS SEEN ON CNET! GoPro used our Underwater WiFi Cable to broadcast a livestream of a shark dive via Periscope. Read the full article here.
Check out our Underwater WiFi packs here which includes an underwater light, professional carry case and accessories to attach your camera to a pole for underwater inspections.
The Underwater WiFi Extension Cable for Action Cameras extends the use of WiFi and Bluetooth control of WiFi enabled Action Cameras, such as Yi and GoPro cameras, that are underwater.
(Video shows discontinued GoPro Dive Housing version)
The wet end of the link has a custom pivot mount that attaches to many standard action waterproof action camera housings (the housing is not included). The clip connects to the standard 2pin pivot mount for action camera housings. Just turn on the camera WiFi, close the waterproof camera mount, adjust the wet end clip to be pressed against the back of the camera, and drop the camera into the water. No connection to the camera is necessary. The interface to the camera is wireless.
At the dry end, the WiFi Extension Cable interfaces wirelessly with any wireless device such as an Android phone or tablet or iPhone or iPad or the GoPro WiFi Remote. The GoPro App or similar software provides real time video monitoring and complete control over the camera settings.
|
Camera |
Compatibility ( Y / N ) |
|
HERO8 |
✔ (2.4GHz only) |
|
HERO7 (all models) |
✔ (2.4GHz only) |
|
HERO6 Black |
✔ (2.4GHz only) |
|
GoPro HERO 2018 |
✔ |
|
GoPro Fusion |
✔(2.4 GHz only) |
|
HERO5 Black |
✔ |
|
HERO5 Session |
✔ |
|
HERO4 Black |
✔ |
|
HERO4 Silver |
✔ |
|
HERO4 Session |
✔ |
|
HERO+ WiFi (2014) |
✔ |
|
HERO3+ Black |
✔ |
|
HERO3+ Silver |
✔ |
|
HERO3 Black |
✔ |
|
HERO3 Silver |
✔ |
|
HERO3 White |
✔ |
|
HERO2 |
✘ |
|
HERO |
✘ |
How do I adjust the wet-end antenna to fit my camera's housing model?
The wet-end is connected to the standard 2pin action camera pivot mounting system. The attachment of the mounting knuckle to the wet-end antenna is slotted with two screws that allow the wet-end antenna to be adjusted to fit tightly against the back of the camera housing for optimal signal transmission.
To adjust the position, loosen the two screws at the base of the wet-end antenna as well as the thumbscrew. Pivot the antenna to the back of the camera and slide the antenna so that it is flat with the back of the camera housing before tightening the two knuckle screws.
What is the maximum cable length possible?
We have tested cables to 100 meters (328 feet) with excellent results using a Nexus 5 as the controller. As the cable gets longer, the signal will be weaker and results will depend on the presence of interfering signals and the quality of the antenna in the controlling device.
What is the maximum depth?
The maximum depth will depend on the waterproof rating of the camera or housing. For example, the GoPro Dive Housing is rated to a depth of 60 meters, while the GoPro HERO5 through HERO7 cameras are waterproof up to 10meters without an added waterproof housing. When using a waterproof housing, we strongly recommend you test the housing with no camera every time before inserting the camera. A small scratch, dirt, grease or hair can be enough to allow water in.
How far can the tablet or phone be from the dry-end antenna?
It depends on the cable length, orientation of the dry-end antenna, the type of the antenna in the controlling device, and the interference from other signals. It will work for a few feet in most cases, but the closer the better.
What WiFi frequency does the cable work with?
2.4 GHz. The cable is not compatible with 5 GHz. On HERO 7 / HERO 6 / Fusion cameras, make sure to select 2.4 GHz in the wifi settings menu (earlier model cameras auto switch). Refer to this GoPro support article for more information.
How do I determine the best orientation for the adapter relative to my phone/tablet?
There are many apps available that show the changes in WiFi signal strength as the dry-end antenna moved. We use WiFi Analyzer.
How do I attach the dry end to the monitoring device?
The dry end interface can be attached to the back of the phone or tablet using the included velcro tape or 3M double sided removable mounting squares.
What have people used your WiFi Extender for?
An example of the Underwater WiFi Extender in action:
A HERO3 camera attached to a 15 foot fiberglass Bream pole using a handlebar mount is being used to do a hull inspection of this sailboat. A golf ball retriever also makes a good extendable pole for mounting the camera. The video preview allows the user to select snapshots and take short close up videos of delamination, osmosis damage, algae growth or barnacles.
What do your customers say?
Just want to send you guys my sincere thanks for providing the Go-pro wifi extender equipment last weekend, we successfully spotted the DJI Phantom drone that was lost in a lake with 10 inch visibility and equipment worked flawlessly underwater!
Thanks So Much! -MB
General support can be found on our Support pages here.
Also read the FAQ's tab for more information.
Product Code: LWF
$2,650.00 USD
When you need a high quality underwater vision system, look no further. This kit has been born out of the needs of professional and government organisations including Rescue Crews and the Coast Guard and as such is of the highest quality - GoPro image quality, LumeCube lighting system and the robust underwater wifi cable housed in a moulded foam hard enclosure.
Provide your team with the means to safely and remotely inspect assets without entering the water. Using the GoPro app, view a real time video feed of the asset during inspections as well as providing a means of recording the video feed for future use, all in 4K quality.
The pack includes the following:
|
Camera |
Compatibility ( Y / N ) |
|
HERO7 (all models) |
✔ |
|
HERO6 |
✔ |
|
HERO 2018 |
✔ |
|
HERO5 Black |
✔ |
|
HERO5 Session |
✔ |
|
HERO4 Black |
✔ |
|
HERO4 Silver |
✔ |
|
HERO4 Session |
✔ |
|
HERO+ WiFi (2014) |
✔* |
|
HERO3+ Black |
✔ |
|
HERO3+ Silver |
✔ |
|
HERO3 Black |
✔ |
|
HERO3 Silver |
✔ |
|
HERO3 White |
✔ |
|
HERO2 |
✘ |
|
HERO |
✘ |
*For cables shipped before Dec 2018 - The "HERO+ WiFi" camera cannot be removed from the Standard sized housing so cannot be used with WiFi Extension Cable lengths longer than 125ft that clip into the GoPro Dive Housing.
How do I replace the standard backdoor with the wet end of the Underwater WiFi Extension Cable (older version of wifi cable - not required for new version shipped after Dec 2018)?
The standard backdoor of the GoPro Housing can be removed and replaced with the wet end of the Underwater WiFi Extension Cable. If you look at the bottom of the hinge holding the backdoor to the front of the housing, you should notice that it is slotted. The backdoor of the GoPro housing snaps off of the camera housing if you open the backdoor all the way and rotate or pull the backdoor downward. No tools are required. This video shows how to easily unclip the standard backdoor from the GoPro Housing: https://www.youtube.com/watch?v=zghMZyiwqYs
How far can the tablet or phone be from the dry-end antenna?
It depends on the cable length, orientation of the dry-end antenna, the type of the antenna in the controlling device, and the interference from other signals. It will work for a few feet in most cases, but the closer the better.
How do I determine the best orientation for the adapter relative to my phone?
There are many apps available that show the WiFi signal strength. We use WiFi Analyzer
How do I attach the dry end to the monitoring device?
The dry end interface can be attached to the back of the phone or tablet using velcro or 3M double sided removable mounting squares. This is not required, your phone or tablet just needs to be relatively close.
General support can be found on our Support pages here.
Also read the FAQ's tab for more information.
$3,799.00 USD
Product Code: AWP10
When you need a high quality underwater vision system, look no further. This kit has been born out of the needs of professional and government organisations including Rescue Crews and the Coast Guard and as such is of the highest quality - GoPro image quality, lightweight yet strong carbon fiber telescopic pole, LumeCube lighting system and the robust underwater wifi cable housed in a moulded foam hard enclosure.
The telescopic carbon fiber pole uses a high quality clamping system with articulating arm to get exactly the length and angle you need, and is stored in its own separate hard cased enclosure.
Provide your team with the means to safely and remotely inspect assets without entering the water. Using the GoPro app, view a real time video feed of the asset during inspections as well as providing a means of recording the video feed for future use, all in 4K quality.
The pack includes the following:
|
Camera |
Compatibility ( Y / N ) |
|
HERO7 |
✔ |
|
HERO6 |
✔ |
|
HERO5 |
✔ |
|
HERO5 Session |
✔ |
|
HERO4 Black |
✔ |
|
HERO4 Silver |
✔ |
|
HERO4 Session |
✔ |
|
HERO+ WiFi (2014) |
✔ |
|
HERO3+ Black |
✔ |
|
HERO3+ Silver |
✔ |
|
HERO3 Black |
✔ |
|
HERO3 Silver |
✔ |
|
HERO3 White |
✔ |
|
HERO2 |
✘ |
|
HERO |
✘ |
How long in the telescopic pole?
The pole has two telescopic sections connected by an articulating hinge. Fully folded/collapsed, the pole measures 79" long. The longer handle section extends to 262", while the shorter camera side section extends from 41" to 70".
How do I replace the standard backdoor with the wet end of the Underwater WiFi Extension Cable?
The standard backdoor of the GoPro Housing can be removed and replaced with the wet end of the Underwater WiFi Extension Cable. If you look at the bottom of the hinge holding the backdoor to the front of the housing, you should notice that it is slotted. The backdoor of the GoPro housing snaps off of the camera housing if you open the backdoor all the way and rotate or pull the backdoor downward. No tools are required. This video shows how to easily unclip the standard backdoor from the GoPro Housing: https://www.youtube.com/watch?v=zghMZyiwqYs
How far can the tablet or phone be from the dry-end antenna?
It depends on the cable length, orientation of the dry-end antenna, the type of the antenna in the controlling device, and the interference from other signals. It will work for a few feet in most cases, but the closer the better.
How do I determine the best orientation for the dry-end antenna relative to my phone/tablet?
There are many apps available that show the WiFi signal strength change when the dry-end antenna moved. We use WiFi Analyzer
How do I attach the dry end to the monitoring device?
The dry-end interface can be attached to the back of the phone or tablet using velcro or 3M double sided removable mounting squares.
General support can be found on our Support pages here.
Also read the FAQ's tab for more information.
$650.00 USD
The Deep Water Camera Housings have room for the GoPro HERO3 or HERO4 camera and a BacPac sized accessory, such as a GoPro Battery BacPac or the CamDo Blink Time Lapse Controller along with access to GoPro camera's USB and HDMI ports and the input/output ports of Blink. The optional battery housing extension (DeepEXT) is designed to fit up to three V15 (15 Watt-hour) batteries or one V50 battery that have the Always On feature required for long term time lapses. Each V15 battery provides about 3 times the recording length of the standard 4.4Wh HERO4 battery. With 3 x V15 batteries, that is 10 x the normal GoPro battery life!
The housing is carved from a solid block of 6061 aluminum alloy that has been anodized to provide great resistance to saltwater and harsh environments. The housing has been tested to withstand pressures of 2,000 ft.
Couple Deep with the DeepEXT housing extension for extra battery storage. Buy it here.
|
Camera |
Compatibility ( Y / N ) |
|
HERO5 |
✘ |
|
HERO5 Session |
✘ |
|
HERO4 Black |
✔ |
|
HERO4 Silver |
✔ |
|
HERO4 Session |
✘ |
|
HERO (2014) |
✘ |
|
HERO3+ Black |
✔ |
|
HERO3+ Silver |
✔ |
|
HERO3 Black |
✔ |
|
HERO3 Silver |
✔ |
|
HERO3 White |
✔ |
|
HERO2 |
✘ |
|
HERO |
✘ |
Compatible with the GoPro HERO3 and HERO4 cameras.
How large is the Deepwater Housing and what does it weigh?
The Deep housing weighs 2.690 lb (1.220kg) and has the following outer dimensions: Length 3 ¼” (8.25cm), Diameter 4 ¼" (10.8cm). The housing extension (DeepEXT) weighs 2.415 lb (1.095 kg) and has the outer dimensions: Length 6 ¼" (15.9cm), Diameter 4 ¼" (10.8cm).
How many batteries can fit inside the DeepEXT housing extension?
The DeepEXT housing extension has a 3⅓” internal diameter and provides an additional length of 5⅓” that can be used to house up to three V15 battery packs or other accessories.
If I need more space, can I attach multiple DeepEXT extensions together?
Yes. Multiple DeepEXT housing extensions can be attached together to lengthen the housing by an additional 5⅓".
How long will the battery last before it is discharged?
How long the battery will last depends on many factors such as the camera you are using and the shooting schedule you have programmed. Use our Time Lapse Calculator and Table of Power Consumption figures to help make an estimate.
The HERO4 camera provides approximately 1-2 hours of total video recording time without external batteries at room temperature. Each V15 provides about 3 times the recording length of the standard 4.4Wh HERO4 battery. Using 3 x V15 batteries, you can expect 10 times the standard GoPro battery life. Coupled with the power saving features of the Blink controller, you can adjust the time lapse interval between images or schedule specific recording times to be able to deploy for many days or weeks.
If you are taking time lapse images, calculations can be done using our Time Lapse Calculator. Keep in mind that temperature, lighting, battery fatigue, and other electrical inefficiencies will prevent the camera from using the full battery capacity.
Why is Always On mode important for an external battery pack?
Most of the USB battery packs on the market have an automatic power saving feature which turns off the battery if the battery is not constantly supplying power to a device. If the GoPro is powered off between triggers, the external battery might shutdown due to inactivity. Often, this feature is not even mentioned in the battery description, and only discovered when you find the camera's internal battery is dead, even though the external battery packs are still fully charged. The V15 has two modes of operation, including an Always On mode that prevents the battery from automatically turning off due to periods of inactivity.
Can the housing accommodate a wired connection?
The aluminum housing can be drilled to safely accommodate another connector such as a cable gland that is available up to 30bar (300m), or even a SubConn connectors for use at extreme depths. There are various types of SubConn connectors to fit different requirements.
What are the properties of the lens?
The optical glass lens provides excellent transmittance throughout the visible and near infrared spectra and down to 350nm in the ultraviolet. The lens highly scratch resistant with a Young’s Modulus of 8.63 x 105 kg/cm2 and has a refractive index of 1.517 at 589nm.
Make sure that the threads are clear of dirt and a thin layer of silicon grease is applied to the o-ring before connecting the components. It is prudent to test the housing without a camera before deploying for the first time.
Connections between the housing should be hand tightened. Over-tightening of the housing compartments can damage the threaded connections.
Over a long deployment, biological growth can prevent further use of exposed threaded mounting holes. If you need access to these mounting points for future deployments or to assist with disassembling the housing, make sure to plug unused mounting holes using a ¼”-20 threaded screw.
General support can be found on our Support pages here.
Average GoPro recording times in each video setting
The CamDo Blink controller board is typically used with our Deep Housings to provide programming flexibility while significantly reducing power consumption. Information on Blink can be found on the following pages:
Also read the FAQ's tab for more information.
Product Code: HDE01
$300.00 USD
The DeepEXT is a professional grade aluminum housing extension that attaches to our DEEP underwater camera housing suitable for deep water and extreme environment monitoring using the HERO3 and HERO4 cameras.
DeepEXT provides an additional 5” behind the camera for batteries or other accessories. The housing is designed to fit up to three V15 batteries (15 Watt-hour) or one V50 battery that have the Always On feature required for long term deployment using our Blink controller board. Each V15 battery provides about 3 times the recording length of the standard 4.4Wh HERO4 battery. This means you can extend the standard GoPro battery life by 10 times! Multiple DeepEXT housing extensions can be attached together to lengthen the DEEP underwater camera and increase battery capacity even further. Using Blink, this enables deep water long term deployment.
The housing extension is carved from a solid block of 6061 aluminium alloy that has been anodized to provide great resistance to saltwater and harsh environments. The housing has been tested to withstand pressures of 2,000 ft.
|
Camera |
Compatibility ( Y / N ) |
|
HERO5 |
✘ |
|
HERO5 Session |
✘ |
|
HERO4 Black |
✔ |
|
HERO4 Silver |
✔ |
|
HERO4 Session |
✘ |
|
HERO (2014) |
✘ |
|
HERO3+ Black |
✔ |
|
HERO3+ Silver |
✔ |
|
HERO3 Black |
✔ |
|
HERO3 Silver |
✔ |
|
HERO3 White |
✔ |
|
HERO2 |
✘ |
|
HERO |
✘ |
Compatible with the GoPro HERO3 and HERO4 cameras.
How large is the Deepwater Housing and what does it weigh?
The Deep housing weighs 2.690 lb (1.220kg) and has the following outer dimensions: Length 3 ¼” (8.25cm), Diameter 4 ¼" (10.8cm). The housing extension (DeepEXT) weighs 2.415 lb (1.095 kg) and has the outer dimensions: Length 6 ¼" (15.9cm), Diameter 4 ¼" (10.8cm).
How many batteries can fit inside the DeepEXT housing extension?
The DeepEXT housing extension has a 3⅓” internal diameter and provides an additional length of 5⅓” that can be used to house up to three V15 battery packs or other accessories.
If I need more space, can I attach multiple DeepEXT extensions together?
Yes. Multiple DeepEXT housing extensions can be attached together to lengthen the housing by an additional 5⅓" each.
How long will the battery last before it is discharged?
How long the battery will last depends on many factors such as the camera you are using and the shooting schedule you have programmed. Use our Time Lapse Calculator and Table of Power Consumption figures to help make an estimate.
The HERO4 camera provides approximately 1-2 hours of total video recording time without external batteries at room temperature. Each V15 provides about 3 times the recording length of the standard 4.4Wh HERO4 battery. Using 3 x V15 batteries, you can expect 10 times the standard GoPro battery life. Coupled with the power saving features of the Blink controller, you can adjust the time lapse interval between images or schedule specific recording times to be able to deploy for many days or weeks.
If you are taking time lapse images, calculations can be done using our Time Lapse Calculator. Keep in mind that temperature, lighting, battery fatigue, and other electrical inefficiencies will prevent the camera from using the full battery capacity.
Why is Always On mode important for an external battery pack?
Most of the USB battery packs on the market have an automatic power saving feature which turns off the battery if the battery is not constantly supplying power to a device. If the GoPro is powered off between triggers, the external battery might shutdown due to inactivity. Often, this feature is not even mentioned in the battery description, and only discovered when you find the camera's internal battery is dead, even though the external battery packs are still fully charged. The V15 has two modes of operation, including an Always On mode that prevents the battery from automatically turning off due to periods of inactivity.
Can the housing accommodate a wired connection?
The aluminum housing can be drilled to safely accommodate another connector such as a cable gland that is available up to 30bar (300m), or even a SubConn connectors for use at extreme depths. There are various types of SubConn connectors to fit different requirements.
General support can be found on our Support pages here.
Make sure that the threads are clear of dirt and a thin layer of silicon grease is applied to the o-ring before connecting the components. It is prudent to test the housing without a camera before deploying for the first time.
Connections between the housing should be hand tightened. Over-tightening of the housing compartments can damage the threaded connections.
Over a long deployment, biological growth can prevent further use of exposed threaded mounting holes. If you need access to these mounting points for future deployments or to assist with disassembling the housing, make sure to plug unused mounting holes using a ¼”-20 threaded screw.
See the 'Deep' manual in our Resources section for further detail
Average GoPro recording times in each video setting
The CamDo Blink controller board is typically used with our Deep Housings to provide programming flexibility while significantly reducing power consumption. Information on Blink can be found on the following pages:
Also read the FAQ's tab for more information.
Product Code: HDE02
$799.00 USD
ADVANCED USERS ONLY. IF YOU ARE UNABLE TO DEPLOY YOUR OWN FTP SERVER HEAD ON OVER HERE TO CloudX.
Please note, CamDo is unable to support troubleshooting your FTP server and network connections.
The following diagram summarises the difference between using CamDo's CloudX platform vs deploying your own FTP server.
|
|
FTP for UpBlink allows you to integrate image upload into your existing infrastructure.
FTP and SFTP protocols supported.
Image upload after every image or once per day.
Status file upload so you can check on vital stats such as SD card free space.
Monitor your time lapse camera remotely.
If you don't have the time to worry about deploying your own FTP server, you'll want to check out CloudX, CamDo's managed time-lapse platform.
Uploads a text file to a status folder on your server listing heartbeat status items confirming:
In order to use this feature, UpBlink must be near a 802.11n WiFi access point with an internet connection(either an open WiFi network or WPA secure network). WEP secure networks are older technology and not supported. Alternatively a 3G/4G hotspot can be plugged into UpBlink.
FTP functionality for UpBlink is a one-off purchase for lifetime access including lifetime firmware updates.
If you don't know how to setup an FTP server or need email notifications and automatic time lapse generation, checkout CloudX, CamDo's managed time lapse platform.:
The following compares FTP functionality to the CamDo CloudX service.
|
Feature/Pricing |
FTP |
CloudX Lite Plan |
CloudX Pro Plan |
|
Status Heartbeat |
✔ |
✔ |
✔ |
|
Daily Email |
✘ |
✔ |
✔ |
|
Image Upload |
✔ |
✘ |
✔ |
| Cloud Storage | By customer |
✘ Status history only |
✔ 15 GB storage |
| Automatic Time Lapse Creation | By customer | ✘ |
✔ Once per week |
| Monthly fee | n/a | ✔ | ✔ |
| One-off fee | ✔ | n/a | n/a |
The platform is compatible with UpBlink and GoPro cameras.
Additional features we are working on:
|
Camera |
FTP Heartbeat |
FTP Upload |
| ✔ | ✔ | |
| ✘ | ✘ | |
|
✘ |
✘ |
What is an FTP server?
If you are not familiar with FTP, you will want to check out CloudX, CamDo's managed time lapse platform.
I just received UpBlink - how do I activate FTP functionality?
Once you have received your UpBlink controller, email support@cam-do.com with your UpBlink SSID details and we will send you a firmware update keyed specifically to your device. See the next FAQ to check your activation.
I just activated FTP - how do I know it worked and where do I put in my server settings?
Once activated, the following dropdown box will appear under "Upload Schedule" --> "Upload Type" (see screenshot below). Select FTP or SFTP and fill in the server details.
Can I use the FTP firmware on more than one UpBlink?
No. each firmware is keyed to your particular UpBlink controller. If you have multiple controllers, you will need to purchase 1 x FTP license per UpBlink controller.
Can I use FTP to upload to Google Drive or DropBox?
No. You will need to deploy your own FTP server or purchase a subscription from a web based service. Last time we checked, Box.com offered an FTP service for Enterprise and Business accounts.
How do I setup an FTP server?
If you don't know how to setup an FTP server or need email notifications and automatic time lapse generation, check out CloudX, CamDo's managed time lapse platform.
Do you support FTP and SFTP?
Yes, both protocols are supported. We do not support FTPS.
Help, my FTP connection is not working.
We cannot support the setup of your FTP server, however we suggest the following as a starting point:
Can I get status updates?
Yes, a status.json text file containing status information is uploaded to the FTP server so you can check status remotely.
Can I update firmware remotely using FTP?
Yes, simply place the UpBlink firmware update file into the status folder. On the next upload event, UpBlink will download the firmware and update.
Can I change the settings of the camera remotely?
Not yet. This is likely to be a future feature.
This product does not have any specific support pages as it is a customer deployed FTP server. Please see the FAQ's tab for more information.
General support can be found on our Support pages here.
Also read the FAQ's tab for more information.
Product Codes: SCS09 (FTP)
$79.00 USD
CSI FIRMWARE - FOR GOPRO HERO4 BLACK AND SILVER CAMERAS
The CSI firmware update is a HERO4 firmware patch that restores the script functionality that was available on the previous HERO3 line of cameras. This allows the HERO4 cameras to run script commands saved to the SD card that will run each time the camera is powered on. We have three versions of the CSI script controller (csiController).
The HERO4 Lite-csiController (click here for more info and to access) only allows for a few simple commands and a maximum of 6 command lines. The Lite scripts cannot be executed when the GoPro's WiFi is active. The Lite version is designed for use with our TL and PS controller boards that are only able to trigger the camera to turn on but not turn the camera off or control the GoPro’s shutter function.
The HERO4 Pro-csiController allows scripts to run when the GoPro’s WiFi is active and the use of an unlimited number of command lines. Pro-csiController scripts can be used to adjust all the setting available in the GoPro menu. The Pro-csiController also includes additional script commands that are not available on the HERO3 cameras such as changing the IP address of the camera and our WiFi monitor function.
When using WiFi scripts with Blink for time lapse images, Blink can be programmed to activate the GoPro's WiFi for a set amount of time each day or week for downloading and clearing the SD card using the GoPro App before the camera and WiFi are turned off to conserve battery. Since Blink's time lapse photo setting has a camera on time of a few seconds, Blink will turn the camera off before WiFi is triggered under regular photo operation. Blink’s Manual controls or video mode can be used to extend the camera on-time to allow the script to activate WiFi for a set length of time.
The HERO4 Cloud-csiController (email for details) allows the HERO4 camera to connect to an 802.11n WiFi network as a client rather than only being able to act as the WiFi host that can be connected to using GoPro App. When connected to a WiFi network as a client, it allows the camera to automatically upload images via FTP or WebDAV to a web server or to be controlled using REST GET commands from your web browser.
Using the automatic upload script, the full sized images are saved to the SD card and the Cloud firmware can automatically upload the full sized image or a smaller thumbnail image (approximately 1000 pixels wide) so you can remotely view and download the images. The GoPro's WiFi is activated for only the duration of the file transfer before WiFi is turned off with the camera to conserve the battery.
The GoPro can only connect to an open network (no password) but the network can have a hidden SSID, MAC address filtering, and firewall settings if extra security is needed. This is advanced functionality and requires a level of familiarity with router settings. Your WiFi network hotspot or access point must be within 20 feet of the camera for reliable operation.
The list of commands is as follows. Further detailed information is available on our support page.
Feature list for the different versions:
|
Feature |
Lite |
Pro |
Cloud |
|
Script Length |
6 Lines Max |
Unlimited |
Unlimited |
|
Set Auto-Off Timer |
✔ |
✔ |
✔ |
|
Turn Off Camera |
✔ |
✔ |
✔ |
|
Mode Selection (Video/Photo) |
✔ |
✔ |
✔ |
|
Mode Selection (Burst/Night Photo) |
✘ |
✔ |
✔ |
|
Video low-light (On/Off) |
✘ |
✔ |
✔ |
|
Protune (Video/Photo) |
✘ |
✔ |
✔ |
|
Set Exposure Level (Video/Photo) |
✘ |
✔ |
✔ |
|
Set Resolution |
✘ |
✔ |
✔ |
|
Shutter |
✔ |
✔ |
✔ |
|
Sleep |
✔ |
✔ |
✔ |
|
WiFi On/Off |
✘ |
✔ |
✔ |
|
IP Changer* |
✘ |
✔ |
✔ |
|
WiFi Monitor** |
✘ |
✔ |
✔ |
|
Cloud Service Upload |
✘ |
✘ |
✔ |
|
restConnect |
✘ |
✘ |
✔ |
|
Cost |
Free |
$79 per camera*** |
$250 per camera***, the upload server is not included (email for details) |
* Allows the GoPro camera IP address to be changed for when multiple cameras are in use in advanced applications.
**Refers to the bug which turns WiFi off when a USB cable is disconnected from the camera. The WiFi Monitor function will keep WiFi on.
***Note that a license of the firmware needs to be purchased for each camera as it is tied to the camera serial number. If your camera breaks we will be able to transfer it over to your new or repaired camera.
Features
Lite
Pro/Cloud
Cloud
When using scripts make sure your SD card has a minimum read and write speeds of 30MB/s (U3 rated) You are strongly advised to use an SD card from the recommended list on GoPro's website. Use of cards not on the list, will greatly increase your chance of trouble with your setup. Note that some SD cards have the same product name as the cards on the list but are an older version that only have a U1 rating. Make sure your SD card has a U3 rating. Please use our SD card speed tester (http://cam-do.com/pages/sd-card-speed-tester) to check your SD card has a minimum write and read speed of 30 MB/s.
Scripts can be used with our HERO4 compatible controller boards to carry out complex functions. The csi scripts are executed each time the camera is triggered to turn on by either the CamDo controller board or the Power/Mode button.
|
Camera |
Compatibility (Y/N) |
|
HERO4 Black |
✓ |
|
HERO4 Silver |
✓ |
|
HERO (2014) |
✘ |
|
HERO3+ Black |
✘ |
|
HERO3+ Silver |
✘ |
|
HERO3 Black |
✘ |
|
HERO3 Silver |
✘ |
|
HERO3 White |
✘ |
|
HERO2 |
✘ |
|
HERO |
✘ |
Learn how to set-up and use Pro csiFirmware here.
Script Commands
A list of script commands can be found here. A few sample scripts can be found here.
Can I use the firmware on multiple cameras?
No, you will need to purchase a separate version for each camera as it is locked to your camera serial number. If your camera breaks or is replaced (and therefore has a different serial number), please email support@cam-do.com and we will help you out.
Where can I find sample scripts and a complete list of script commands?
A list of script commands can be found here. A few sample scripts can be found here.
Can the custom CSI update be removed?
Yes, the CSI firmware update is not permanent and can be overwritten with an official GoPro update file. Official GoPro HERO4 camera updates can be found here.
When the Pro-Firmware is used with Blink, how can the WiFi on time be controlled if the script runs each time the camera is powered on?
Our HERO4 Pro Firmware can be used with Blink to schedule a set time each day or week for the GoPro's WiFi to turn on for downloading and clearing the SD card using the GoPro App before the camera and WiFi are turned off to conserve battery. This is achieved by using a script to activate the WiFi for a set amount of time. Although the script will run each time the camera is turned on, an initial wait period of 1 minute is set at the start of the script to ensure that WiFi is not triggered when Blink is only programmed for time lapse images. Blink's time lapse photo setting has a camera on time of a few seconds so Blink will turn the camera off before WiFi is triggered under regular operation.
When used with Blink, can the WiFi on time be controlled if also recording video?
No, this configuration will currently only work with time lapse images and will not work if you are also filming video at a certain time of day. This is because the WiFi script saved to the SD card will run each time the camera is triggered to turn on. The first command line of the script is a wait period to ensure that when using standard photo time lapse operation, the camera is turned off by Blink before the WiFi commands of the script are executed.
Can you lock the exposure time using a script?
The shutter exposure settings can only be adjusted to the setting available in the GoPro setup menu.
How does the IP changer work?
The IP address of the camera can be chosen by a new “ip.csi” file that needs to be saved in the SD card's root folder. The "ip.csi" file can be used on the SD card along with an "autoexec.csi" command script. The camera remains as the wifi host.
What type of router is required for using the Cloud Firmware?
To use the Cloud firmware, you need to have an open WiFi network (no password protection) that broadcasts an 802.11n signal within range of the GoPro camera. The router needs to maintain a stable connection to the internet. Note that some routers, typically 3G & 4G routers, have a power/data saving mode that needs to be disabled. You will need to manually input the SSID and MAC address of the router into a script that is saved to the camera's SD card.
Since the WiFi network cannot be password protected, is there another way to secure the network?
For security, some routers allow the use of MAC address filtering so that only authorized devices (the GoPro camera) can connect and if you use a personal hotspot style device, you can also configure the firewall to only have access to the upload server's website (eg. box.com).
What happens to the images if my router’s WiFi signal is briefly lost?
The full sized images are always saved to the SD card so they will not be lost forever. If the GoPro fails to locate the WiFi network programmed in the script due to the network being down, the filename of each failed image upload will be saved to a backlog. The camera will continue to look for the network each time it is triggered. Once the WiFi signal is restored, the camera will resume uploading images. The script will always attempt to upload the most recent photo first. After a successful upload, the camera will start to upload any failed images from the backlog. The maximum amount of time spent searching for the WiFi network before abandoning the upload and maximum time spent uploading images can be set in the script. These are the RouterConnectTimeout & OverallTimeout sections of the script.
Product Codes: SCS01 (Pro-csiController)
SCS02 (Cloud-csiController)
$25.00 USD
Product Code: CBL021

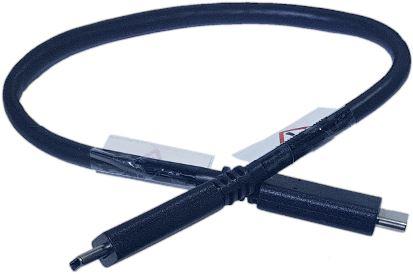

1ft long custom fully populated USB-C cable for use with UpBlink and BlinkX.
$15.00 USD
Product Code: LUS04
Used for updating BlinkX firmware, this OTG cable has a microUSB output. BlinkX controller and USB flash drive not included.
For miniOTG cable used with Blink, click this LINK.
How does the OTG cable work?
USB has two different kinds of endpoint. Only one device is the host, while all other devices are peripherals (clients). BlinkX typically acts as a peripheral device. An OTG cable enables the BlinkX to act as the host, with the USB flash drive as a peripheral that can be accessed by BlinkX to update the controller from a file on the drive.
BlinkX firmware update instructions can be found here: https://cam-do.com/pages/blinkx-firmware
$15.00 USD
Product Code: OTG01
Used for updating Blink firmware, this OTG cable has a miniUSB output. Blink controller and USB flash drive not included.
For microOTG cable used with BlinkX, click this LINK.
How does the OTG cable work?
USB has two different kinds of endpoint. Only one device is the host, while all other devices are peripherals (clients). Blink typically acts as a peripheral device. An OTG cable enables the Blink to act as the host, with the USB flash drive as a peripheral that can be accessed by Blink to update the controller from a file on the drive.
Blink firmware update instructions can be found here: https://cam-do.com/pages/camdo-blink-firmware
$20.00 USD
The LED Wired Remote cable can be used with the BlinkX and Blink to trigger the controller's WiFi signal from a distance. The remote's cable is 3ft long and we offer 2.5mm Extension Cables if a longer distance trigger is needed.
The Remote Shutter Button is used with the CamDo Bullet to allow you to control the GoPro camera's power and shutter functions with the push of a button. The Remote Shutter Button can be used to control a single camera through the Bullet's input port. The output port from the Bullet can be daisy-chained to another Bullet’s input to simultaneously control multiple cameras with a button press from a single Remote Shutter Button.
THE REMOTE SHUTTER BUTTON IS PURCHASED SEPARATELY FROM THE BULLET. Be sure to purchase a Wired Remote for each set of Bullets.
Remote Control of Multiple GoPros
Through the use of a set of Bullets, trigger as many GoPro cameras as you want with a push of a button of the Remote Shutter Button.
Low Power Consumption for Extended Use
When used with Bullet(s), Remote Shutter Button extends your camera’s battery life by allowing you to control the power and shutter functions of your GoPro cameras without the considerable power required for WiFi control.
Product Code: AWR02
$15.00 USD
Product Codes: 3ft - LMF01
10ft - LMF02
25ft - LMF03
The Wired Remote Extension Cables are 2.5mm stereo audio extension cables used to extend the length of a LED Wired Remote for triggering the CamDo BlinkX, Blink, Bullet, or Dash controller boards. The extension cables can also be used to extend the distance between daisy-chained Bullet controllers.
$2.00 USD $4.00 USD
Product Codes: 1ft - LMM01
3ft - LMM03
10ft - LMM10
25ft - LMM25
50ft - LMM50
The various lengths of Patch Cables are Male-Male 2.5mm stereo audio cables (3pin) can be used to connect between the inputs/outputs of our Bullet to daisy-chain multiple cameras together for triggering from a single input source. The 2.5mm audio cables can also be used for custom interfacing with the ports 1&3 of BlinkX. The wire thickness is AWG28.
$6.00 USD $10.00 USD
Product Code: USB-3FT - LUS01
USB-10FT - LUS02
This cable features a standard USB A male connector on one end and a 5-pin mini B connector on the other. It uses 24AWG conductors for the power lines and 28AWG conductors for the data lines, for improved current carrying capacity. The cable is shielded using braid and foil shields and it includes a single ferrite core, which helps filter out electromagnetic and radio frequency interference (EMI and RFI). The connectors are gold plated for smooth, corrosion free connections.
High Speed Charge and Download
Noise resistant
Durable construction
|
Camera |
Compatibility ( Y / N ) |
|
HERO5 |
✘ |
|
HERO5 Session |
✘ |
|
HERO4 Black |
✔ |
|
HERO4 Silver |
✔ |
|
HERO4 Session |
✔ |
|
HERO (2014) |
✔ |
|
HERO3+ Black |
✔ |
|
HERO3+ Silver |
✔ |
|
HERO3 Black |
✔ |
|
HERO3 Silver |
✔ |
|
HERO3 White |
✔ |
|
HERO2 |
✔ |
|
HERO |
✔ |
What is the difference between 28/24AWG and regular 28AWG USB cables?
The 28 AWG data conductors are standard for download data at USB 2.0 speeds. The power conducting wires are built to a thicker 24 AWG. The increase in thickness of the power wiring allows the cable to carry more power and charge devices at a faster rate.
Free
Product Code: SWI01
We're always trying to improve our products. Please click here to answer a few questions about our WIGO application.
WiGo is a Windows application designed to communicate with GoPro WiFi enabled cameras that can be used to change the camera settings, preview the image, and download photos and videos directly to your PC from the SD card.
Shortly after the iPhone application was released by GoPro, a number of enterprising individuals began to catalog the WiFi commands sent from that app to the GoPro Wifi BacPac. They were generous enough to share their observations on the GoPro User Forum. In particular, dough29 contributed enormously to the task of documenting the List of GoPro Wifi BacPac Commands and has built RemoteGo, an Android app to control the camera. This software builds on their work. Thank you.
WiGo does not require any installation. Download the WiGo.exe file (which will be delivered to you via email) to the folder you wish to use and run it. Your browser and Windows will warn you that this is unsafe. They are right. It is always risky to download an executable file from an unknown source. Never install WiGo or any other program if you are unsure of the source. If you download from cam-do.com, WiGo.exe is coming directly from the author. It does not contain malware of any kind. Never download WiGo.exe from any other site.
Disclaimer:
This is beta testing software. Use at your own risk. This software may damage your camera. The responsibility is entirely with the user. The author accepts no responsibility for any damage that may be caused by using this software.
Can WiGo be set up to automatically take pictures and upload them to a web site for remote viewing?
The free version does not include those features. We are working on a WiGo Professional version that will incorporate many of the extra features that have been requested by our corporate clients. The ability to control multiple cameras with one WiFi adapter and upload the captured photos to a web site on a regular schedule is the most important feature of WiGo Pro. If this is a feature you would like to make use of, please contact us for further details or to influence our design decisions.
What versions of Windows will WiGo run on?
It has been tested on Windows 10, Windows 8, Windows 7 and Windows XP. There is no reason it shouldn't run on almost all Windows versions released in this century. SSID display and automated camera selection are only available in Windows 7 and 8. Users report that it works with the Windows 8 Microsoft Surface Pro Tablet.
Will it work with my camera?
It works with all 3 versions of the HERO3 Cameras and the HERO2 with the WiFi BacPac accessory. There are some features that only work with particular cameras because of the features GoPro has included or the way they have configured their firmware.
HERO3+ includes some new settings and status feedback that were not available in the previous cameras. WiGo works with the HERO3+, but not all settings. HERO4 and HERO5 is not supported.What are the users saying about WiGo?
Feedback has been almost 100% positive. Quite a few users have been happy enough to donate. For example, read these unsolicited emails:
I'm just writing to thank you so so much for the WiGo... i`ve been for about a week or so trying to get the GoPro App through an android emulator for PC and was just about to lose my goddamn mind when I stumbled upon your website, and your wonderful wonderful software. Congratulations on developing this way before GoPro did, or should have done (still dont know why) but the program works amazingly. I don't know if you updated the software since the last time you posted any comments, but I have a HERO3 WHITE ED. and EVERYTHING worked perfectly !!!!! The Previews, the functions, the mode selection, the options selection....everything commanded through the software, the only issue that I believe is normal is the 2 or 3 second delay on the preview image !! but that is expected...and being what it is...even welcome...lol !!!!
- Leonardo in Sao Paulo
Your program fixed my HERO3 Silver blue light problem!!!
Ever since I did the newest firmware update on my HERO3 Silver the blue WiFi lights don't work anymore. This started to cause a problem because you would never really know when the WiFi antenna was on or off. The WiFi button is very easy to activate by accident. It would turn on with out me knowing, rendering the camera battery dead when you wanted to use it. When the camera is off the only way to know the WiFi antenna is on was the blue light blinking.
I found your program online wanting to connect my GoPro to my laptop via WiFi for streaming or just something neat to have.
First of all, on my HERO3 Silver everything works perfectly!!!
I was messing around with the settings for the LEDs in WiGo. Turned the LED setting off then on and now the blue lights work again!!!! Don't know how it fixed it, but it did and has worked ever since.
Now I know when the antenna is really on or off again.
Thank you thank you thank you for such an awesome program. Your time is much appreciated.
I will certainly mention this awesome program and website to my fellow users and also suggest a donation to your efforts.
Thanks again!
- Josh
Tips & Troubleshooting
Streaming video is delayed or cuts off after a few seconds.
The delay is normal and is part of the GoPro implementation.
Some users have reported the streaming working without problems. Others seem to have it stop intermittently. Make sure the firmware in the camera is up-to-date and installed properly. Sometimes a manual install fixes problems after GoPro's automated install has appeared to work. Make sure you are using the latest version of VLC. Restart your computer after updating VLC. WiGo does no more than pass the address of the camera's streaming feed to VLC.
One VLC setting that improves streaming is under VLC - Tools - Preferences - Input & Codecs - Default Caching Policy - select Lowest Latency. There are a lot of settings which can be optimized and perhaps a VLC guru can tell us the best combination.
I see the SD Card on the HERO3 Black but there are no image files.
The latest firmware from GoPro for the HERO3 Black disabled the image file display on the camera's web server. It is possible to run a SOBM script on your SD card which will modify the firmware in the camera to show the files.
Is it possible to capture the streaming video or forward it via the internet?
Yes, it is. It can be done using the features of VLC or with utilities such as FFmpeg and FFplay. TechAnswerGuy has blogged about the process and gmore70 has created a tutorial video showing how to stream GoPro video on YouTube and UStream.
How can I extend the range from my camera to my computer?
There are several ways to do this. One is to use a range extender, which repeats signals from the computer to the camera and vice versa.
Can I control multiple cameras with one computer?
There are several ways to do this. WiGo Pro can access multiple cameras and upload photos using FTP with a single WiFi adapter by accessing them sequentially or control multiple cameras connected to separate WiFi adapters by changing the camera IP address.
Known Bugs
The video mode settings are incomplete. Some video mode settings work on some cameras, but the complete set of mode values for all of the cameras has not been implemented at this time. Some mode settings may be incorrect on some camera models and work correctly on others.
$179.00 USD $530.00 USD
AS SEEN ON CNET! GoPro used our Underwater WiFi Cable to broadcast a livestream of a shark dive via Periscope. Read the full article here. Read about how to broadcast live on Periscope with your GoPro here.
Check out our Underwater WiFi packs here which includes an underwater light, professional carry case and accessories to attach your camera to a pole for underwater inspections.
The Underwater WiFi Extension Cable extends the use of WiFi and Bluetooth control of GoPro HERO3, HERO3+ and HERO4 cameras that are underwater.
(Video below shows GoPro Dive Housing version of WiFi Cable)
The wet end of the link is a custom backdoor which clips to the GoPro Housings (the housing is not included). Our 20ft to 125ft lengths are molded into a GoPro Standard Housing backdoor that is rated to a depth of 40m (131ft). For use at greater depths, our longer lengths are molded into a backdoor that fits the GoPro Dive Housing rated to a depth of 60m (196ft). Just turn on the camera WiFi, close the back of the housing, and drop the camera into the water. No connection to the camera is necessary. The interface to the camera is wireless.
At the dry end, the WiFi Extension Cable interfaces wirelessly with any wireless device such as an Android phone or tablet or iPhone or iPad or the GoPro WiFi Remote. The GoPro App or similar software to provide real time video monitoring and complete control over the camera settings.
Disclaimer: As with regular GoPro waterproof housings, it is prudent to test the housing underwater before putting your camera in every time you use it. Our warranty does not cover incidental damage. Always keep the O-ring and edges of the case clean. Always inspect them before every use. Do not use silicone or other grease on the O-ring.
|
Camera |
Compatibility ( Y / N ) |
|
HERO5 |
✘ |
|
HERO5 Session |
✘ |
|
HERO4 Black |
✔ |
|
HERO4 Silver |
✔ |
|
HERO4 Session |
✘ |
|
HERO+ WiFi (2014) |
✔* |
|
HERO3+ Black |
✔ |
|
HERO3+ Silver |
✔ |
|
HERO3 Black |
✔ |
|
HERO3 Silver |
✔ |
|
HERO3 White |
✔ |
|
HERO2 |
✘ |
|
HERO |
✘ |
*HERO+ WiFI cannot be removed from the Standard sized housing so cannot be used with WiFi Extension Cable lengths longer than 125ft that clip into the GoPro Dive Housing.
How do I replace the standard backdoor with the wet end of the Underwater WiFi Extension Cable?
The standard backdoor of the GoPro Housing can be removed and replaced with the wet end of the Underwater WiFi Extension Cable. If you look at the bottom of the hinge holding the backdoor to the front of the housing, you should notice that it is slotted. The backdoor of the GoPro housing snaps off of the camera housing if you open the backdoor all the way and rotate or pull the backdoor downward. No tools are required. This video shows how to easily unclip the standard backdoor from the GoPro Housing: https://www.youtube.com/watch?v=zghMZyiwqYs
How do I tell if I have a GoPro Dive Housing or Standard GoPro Housing?
All GoPro HERO3 and HERO4 cameras currently ship with the Standard Housing, which is slightly smaller than the Dive Housing and fits of 12ft to 125ft lengths of Underwater WiFi Extension Cable. Our cable lengths of 150ft and above do not fit the Standard Housing and require a Dive Housing.
Please compare your camera housing to these pictures to ensure you have what you need for your project.
What is the maximum cable length possible?
We have tested cables to 100 meters (328 feet) with excellent results using a Nexus 5 as the controller. As the cable gets longer, the signal will be weaker and results will depend on the presence of interfering signals and the quality of the antenna in the controlling device.
What is the maximum depth?
Our longer lengths of Underwater WiFi Extension Cable fit the GoPro Dive Housing which GoPro rates to a depth of 60 meters. We strongly recommend you test the housing and backpack with no camera every time you use it. A small scratch, dirt, grease or hair can be enough to allow water in. Stress may have affected the cable or the exit point. We do not test each backpack before shipping and do not know the maximum depth before failure for your unit.
How far can the tablet or phone be from the dry-end antenna?
It depends on the cable length, orientation of the dry-end antenna, the type of the antenna in the controlling device, and the interference from other signals. It will work for a few feet in most cases, but the closer the better.
How do I determine the best orientation for the adapter relative to my phone?
There are many apps available that show the WiFi signal strength. We use WiFi Analyzer.
How do I attach the dry end to the monitoring device?
The dry end interface can be attached to the back of the phone or tablet using velcro or 3M double sided removable mounting squares.
What have people used your WiFi Extender for?
An example of the Underwater WiFi Extender in action:
A HERO3 camera attached to a 15 foot fiberglass Bream pole using a handlebar mount is being used to do a hull inspection of this sailboat. A golf ball retriever also makes a good extendable pole for mounting the camera. The video preview allows the user to select snapshots and take short close up videos of delamination, osmosis damage, algae growth or barnacles.
What do your customers say?
Just want to send you guys my sincere thanks for providing the Go-pro wifi extender equipment last weekend, we successfully spotted the DJI Phantom drone that was lost in a lake with 10 inch visibility and equipment worked flawless under water!
Thanks So Much! -MB
General support can be found on our Support pages here.
Also read the FAQ's tab for more information.
Product Code: WFEXT
Free
Grab is free to use with two cameras in conjunction with our PowerPad product (15-port or 8-port versions). Purchase the PowerPad License for Grab Software to use with all 8- or 15-ports. Grab Software is a free trial for up to two cameras.
Grab is an automated piece of download software that allows for quick and easy file management of multiple SD cards simultaneously when used with the PowerPad. Couple it with the CamDo Bullet to make creating professional time slice videos much simpler and quicker.
Grab is used with the separately available PowerPad (8S and 15S versions), which allows you to continuously power up to 8 or 15 cameras and is also capable of connecting all cameras to a computer through a single USB port for downloading files from the SD card at up to 480Mb per second. The host computer sees each camera’s SD card and mounts them as individual disks.
The Grab software uses the PowerPad to let you manage these individual disks to transfer files from the SD card to the host computer before clearing the SD card to greatly increase memory capacity. This allows the use of multiple cameras for extended shoots in a much more efficient way.
Note: The Grab Software is only compatible with Windows operating systems.
Currently, Grab Software is only compatible with Windows Software and HERO4 cameras.
|
Camera |
Compatibility ( Y / N ) |
|
HERO5 |
✘ |
|
HERO5 Session |
✘ |
|
HERO4 Black |
✔ |
|
HERO4 Silver |
✔ |
|
HERO4 Session |
✘ |
|
HERO (2014) |
✘ |
|
HERO3+ Black |
✘ |
|
HERO3+ Silver |
✘ |
|
HERO3 Black |
✘ |
|
HERO3 Silver |
✘ |
|
HERO3 White |
✘ |
|
HERO2 |
✘ |
|
HERO |
✘ |
Why can I only access two cameras with Grab?
The free version of Grab lets you use it with 2 x cameras so you can try it out. For use of the software with all ports of the PowerPad, purchase the PowerPad License for Grab Software.
General support can be found on our Support pages here.
If you have a problem with your PowerPad or need more detailed information, you can ask the folks at Cambrionix. They will be most helpful. Cambrionix Troubleshooting.
Product Code: SGR02
$499.00 USD
Product Code: SGR01
If you'd like a free trial of the software for use of up to two cameras, click here.
Grab is an automated piece of download software that allows for quick and easy file management of multiple SD cards simultaneously when used with the PowerPad. Couple it with the CamDo Bullet to make creating professional time slice videos much simpler and quicker. To try out Grab with up to two cameras before purchasing the license, click here.
Grab is used with the separately available PowerPad (8S and 15S versions), which allows you to continuously power up to 8 or 15 cameras and is also capable of connecting all cameras to a computer through a single USB port for downloading files from the SD card at up to 480Mb per second. The host computer sees each camera’s SD card and mounts them as individual disks.
The Grab software uses the PowerPad to let you manage these individual disks to transfer files from the SD card to the host computer before clearing the SD card to greatly increase memory capacity. This allows the use of multiple cameras for extended shoots in a much more efficient way.
Note: The Grab Software is only compatible with Windows operating systems.
Currently, Grab Software is only compatible with Windows Software and HERO4 cameras.
|
Camera |
Compatibility ( Y / N ) |
|
HERO5 |
✘ |
|
HERO5 Session |
✘ |
|
HERO4 Black |
✔ |
|
HERO4 Silver |
✔ |
|
HERO4 Session |
✘ |
|
HERO (2014) |
✘ |
|
HERO3+ Black |
✘ |
|
HERO3+ Silver |
✘ |
|
HERO3 Black |
✘ |
|
HERO3 Silver |
✘ |
|
HERO3 White |
✘ |
|
HERO2 |
✘ |
|
HERO |
✘ |
What is the difference between Grab Software & PowerPad License for Grab Software?
The free version of Grab lets you use it with 2 x cameras so you can try it out. For more than 2 x cameras, you will need to purchase the PowerPad License for Grab Software. We will then request the serial number of your PowerPad in order to provide access.
General support can be found on our Support pages here.
If you have a problem with your PowerPad or need more detailed information, you can ask the folks at Cambrionix. They will be most helpful. Cambrionix Troubleshooting.
$495.00 USD
File management for dozens of SD cards simultaneously has never been easier with the CamDo Grab software for use with the PowerPad.
The PowerPad Multi Camera Charge and Sync Station can supply each USB port with 2.1 amps of power at 5.2 volts DC, sufficient for rapid battery charging or for operating tablets as well as GoPro cameras. The PowerPad15S can charge and download files from up to 15 cameras, while the PowerPad8S handles up to 8 cameras. The PowerPad is capable of recognizing any USB chargeable device and automatically configuring itself to emulate the appropriate charger for maximum charging efficiency on each USB port.
When the PowerPad is connected to a host computer, each camera can be switched from “data-connected” (for charging and file management) to “data-disconnected” (for only charging) under the control of the host computer. This allows the use of multiple cameras without the need to plug and unplug cables or remove the SD cards from the cameras. Standard USB cables can be used to connect the cameras to the PowerPad unit.
In the PowerPad's "data-connected" computer connected sync mode, the host computer sees each camera’s SD card and mounts them as individual disks. Files can be downloaded from the SD cards at up to 480 Mb per second. The cards can be erased and control scripts can be uploaded from the host computer. (HERO3 and HERO3+ use SOBM scripts, HERO4 use CSI scripts)
*While the PowerPad can be used with all operating systems and cameras, currently, the CamDo Grab Software is only compatible with Windows Software and HERO4 cameras.
|
Camera |
Compatibility ( Y / N ) |
|
HERO5 |
✔* |
|
HERO5 Session |
✔* |
|
HERO4 Black |
✔ |
|
HERO4 Silver |
✔ |
|
HERO4 Session |
✔* |
|
HERO (2014) |
✔* |
|
HERO3+ Black |
✔* |
|
HERO3+ Silver |
✔* |
|
HERO3 Black |
✔* |
|
HERO3 Silver |
✔* |
|
HERO3 White |
✔* |
|
HERO2 |
✔* |
|
HERO |
✔* |
Is the PowerPad compatible with Macintosh, Linux, Windows?
The PowerPad is compatible with all operating systems, including Windows, Mac and Linux. Any computer which is a USB compatible host can be used to control the PowerPad. However, the CamDo Grab software can only be used on a Windows operating system
What port do I use to connect the PowerPad to my computer?
The USB port labeled “Host Port” is used to connect the PowerPad to your computer or power supply.
I need more than 15 cameras. Is there a bigger unit available?
Each PowerPad15S unit can charge and connect to 15 cameras. Multiple PowerPads can be plugged into separate USB ports on the computer or a USB hub. A PowerPad cannot be plugged into one of the ports of another PowerPad.
Will the system be compatible with future versions of the firmware/camera?
The firmware in the PowerPad is upgradeable. If there are changes in camera firmware that necessitates it, new firmware can be downloaded and installed.
The PowerPad comes with a 12 month manufacturer's warranty.
General support can be found on our Support pages here.
If you have a problem with your PowerPad or need more detailed information, you can ask the folks at Cambrionix. They will be most helpful. Cambrionix Troubleshooting.
Product Codes: PowerPad15S - PPP01
PowerPad8 - PPP02
Discontinued
Using Bullet is very simple. Just plug it into the camera and press the button on the Wired Remote. If the camera is off, it will turn on. If the camera is on and in photo mode, it will act as if you have hit the camera shutter button and take a photo. If in video mode it will start or stop video. Holding the button for more than 3 seconds will turn the camera off.
The CamDo Bullet is a low power GoPro accessory for the HERO3+ Black, HERO4 Silver, and HERO4 Black cameras that allows you to control the GoPro camera's power and shutter functions through the use of a wired push button remote. Bullet can be used to control a single camera or multiple cameras using a single remote. Each Bullet is purchased separately and has an input and output port, allowing the boards to be daisy-chained so that any number of cameras can be triggered simultaneously.
Each Bullet comes with a 1 foot patch cable for daisy-chaining between Bullet boards. If the cameras need to be placed further apart or you need a longer cable between the first bullet and the push button remote, we are offering extension cables at 3ft, 10ft, and 25ft lengths.
BULLET DOES NOT INCLUDE A PUSH BUTTON REMOTE. Be sure to also purchase a LED Wired Remote as a trigger for each set of Bullets. If you need extra length for your wired remote or between each Bullet, we have Extension Cables here.
|
Camera |
Compatibility ( Y / N ) |
|
HERO5 Black |
|
|
HERO5 Session |
|
|
HERO4 Black |
✔ |
|
HERO4 Silver |
✔ |
|
HERO4 Session |
✘ |
|
HERO (2014) |
✘ |
|
HERO3+ Black |
✔ |
|
HERO3+ Silver |
✘ |
|
HERO3 Black |
✘ |
|
HERO3 Silver |
✘ |
|
HERO3 White |
✘ |
|
HERO2 |
✘ |
|
HERO |
✘ |
I want to control 4 cameras simultaneously through a remote, what do I need to purchase?
1 x Wired Remote + 4 x Bullets
Can I power the GoPro camera from Bullet?
Yes, but the GoPro battery is still required for reliable operation. Bullet has a mini-USB input that allows you to power the GoPro through the HERO Port. However powering the GoPro from the HERO Port does not charge the battery so the GoPro battery will need to be recharged separately.
Can I make a custom trigger for the Bullet?
Some users may want to trigger the Bullet with something other than a shutter button. This is possible, however caution must be taken to ensure the Bullet or camera does not become damaged. See the user manual under the section “Building a Custom Trigger” for more info
I need to take photos at exactly the same time. How accurately synchronized are the cameras when I use your cables?
The Bullet does not synchronize the shutter. When the button is pressed, a command is sent to each camera at the same time, however we cannot guarantee that all of the cameras will respond at exactly the same time.
If the shutters are not synchronized, how can I make a bullet time-slice video?
Typically, our customers shoot video when the cameras are turned on. For 120fps video, the HERO4 can achieve 1080p quality and is a set up that many of our clients use to achieve tight synchronization in post production to achieve such effects as bullet time slice (made famous by the matrix movies). The sound track can be used to provide a synchronizing signal, as simple as a clapper board, or sometimes music. The frames are then grabbed from the video tracks in post production using software such as PluralEyes, AutoPano, PTGui Pro, Adobe Premiere or other products./p>
Does the controller board fit inside the standard waterproof case?
Bullet does not fit in the GoPro Housing with the standard backdoor. Bullet fits in the extended backdoor attachments included in the GoPro Backdoor Kit and provided with the GoPro accessories such as the GoPro LCD BacPac or the GoPro Battery BacPac.
How much does each Bullet weigh?
Bullet weighs 14.5g. The Bullet's PCB without the housing weighs 6.8g. Bullet's PCB can be removed from the housing using a set of Torx screwdrivers size T3 and T5.
General support can be found on our Support pages here.
Average GoPro recording times in each video setting (limited by SD card capacity)
Also read the FAQ's tab for more information.
Product Code: CBU01
Discontinued
'Dash' from CamDo converts your GoPro to a dashcam. Check out the CamDo Dashcam pack which provides you with everything to get started.
Capture exciting footage from your motorbike, race car, plane or helicopter or simply capture a family road trip or bike ride. Plus have the peace of mind if something goes wrong, you will have a record.
The miniUSB trigger input on Dash will work on any 5V power source so it can run using your vehicle's USB accessory jack, or an alternate custom trigger system of your own design. Dash uses a power regulator so the same 5V trigger signal can be used to provide power to the GoPro camera. Note: Dash is only designed for a 5V power input. Attempting to connect to a voltage greater than 5V may result in damage to Dash and/or the GoPro camera.
Dash can use any of the GoPro camera's video modes and can be configured to 8 different operating modes for flexibility. When power is applied to the trigger input, Dash can either start recording immediately, or just turn the camera on which can be useful if only using the GoPro's miniHDMI output or running scripts saved to the SD card. When power is removed, Dash can either end the recording immediately and turn off the camera, continue recording for 1 or 10 minutes before ending the recording and turning off the camera, or ignore the removal of the trigger signal and continue to stay powered on.
Dash will fit inside the extended backdoors included in the GoPro Backdoor Kit that are designed to fit GoPro BacPac accessories. We recommend using the frame mount inside a vehicle.
|
Camera |
Compatibility ( Y / N ) |
|
HERO5 |
✘ |
|
HERO5 Session |
✘ |
|
HERO4 Black |
✔ |
|
HERO4 Silver |
✔ |
|
HERO4 Session |
✘ |
|
HERO (2014) |
✘ |
|
HERO3+ Black |
✔ |
|
HERO3+ Silver |
✘ |
|
HERO3 Black |
✘ |
|
HERO3 Silver |
✘ |
|
HERO3 White |
✘ |
|
HERO2 |
✘ |
|
HERO |
✘ |
Compatible with 5V USB Devices.
Which GoPro cameras is Dash compatible with?
Please see the Compatibility tab.
My race car vibrates a lot. How do I keep secure the USB cable in Dash or the camera?
We recommend placing a loop in the USB cable and a cable tie to provide a level of security and to reduce the vibration. We also recommend mounting to the windshield where practicable which has less vibration than the dashboard.
How do I know what mode I am in?
When you plug Dash in, the LED on the back will flash the same number of times as the set mode. Eg if you are in mode 3, the LED will flash 3 times. If you are in mode 1, the LED will flash once.
Does powering Dash charge the GoPro battery?
No. While the GoPro camera can be powered through Dash, Dash does not charge the GoPro battery which makes the camera more reliable when recording for long periods by removing the heat generated by the GoPro battery charging circuit.
Do I need the internal camera battery?
Yes, the internal battery must be present to allow time for the GoPro to save the file and ensure your file is not corrupted due to the sudden loss of power. To keep your GoPro charged, we recommend also plugging power into the side of the camera via the mini USB port. The USB charger CamDo offers has 2 x USB output ports so that you can charge the camera at the same time.
Does Dash support scripting?
Yes! Using modes 5, 6, 7, or 8, the camera will only turn on, it will not automatically start recording. You are then in complete control using scripts. CamDo offers custom firmware to enable scripting on the HERO4 camera - check it out here.
How does Looping Video work with the GoPro camera?
The video looping feature of the GoPro cameras allows you to shoot 5 minutes to 2 hours of video in a continuous loop. When the programmed time is up, the camera will erase the first segment of the video and begin recording a new segment. We recommend using the 2hr setting as GoPro chaptering on the MAX setting is not ideal (see below). The video is saved in segments which can be combined using GoPro’s Cineform Studio. Segment length depends on the total time selected.
Check out our detailed blog post here about the best GoPro settings/options for use as a Dashcam.
General support can be found on our Support pages here.
Average GoPro recording times in each video setting (limited by SD card capacity)
Also read the FAQ's tab for more information.
To enter programming mode, insert the wired remote into the “Config/Highlight” port and hold the button down while plugging Dash into the camera. The LED will periodically flash to indicate what mode it is currently set to. Each button press on the wired remote will to cycle to the next operating mode. Unplug Dash or remove all power to exit programming mode.
|
Mode
|
Camera Action / Operation |
|
|
USB power received |
USB power removed |
|
|
1 |
Turn on and start recording |
Stop recording and turn off |
|
2 |
Turn on and start recording |
Continue recording for 1 minute, then stop recording and turn off |
|
3 |
Turn on and start recording |
Continue recording for 10 minutes, then stop recording and turn off |
|
4 |
Turn on and start recording |
Do Nothing |
|
5 |
Turn on |
Stop recording (if recording), and Turn off |
|
6 |
Turn on |
Wait 1 minute (note camera may not be recording in this mode eg if using scripts), then stop recording (if recording) and turn off |
|
7 |
Turn on |
Wait 10 minutes (note camera may not be recording in this mode eg if using scripts), then stop recording (if recording) and turn off |
|
8 |
Turn on |
Do Nothing |
Product Code: CDA01
Discontinued
Here are all the new advantages of BlinkX over Blink:
Use BlinkX to achieve long term time lapse and/or motion detection for your next project. Just plug it into your GoPro and use the BlinkX app to connect and configure up to 10 separate schedules (including email scheduling) using a smartphone, tablet, computer, or any WiFi enabled device which has a web browser (no cell service or internet connection required). For more information, see the Quick Start Guide and User Manual.
A WiFi network with internet access is only required if you would like to use our optional Blink Email feature to provide daily status updates straight to your inbox.
If you are looking at a long term time lapse you may be interested in our BlinkX time lapse packs which incorporate weatherproof enclosures external solar power for long term deployment or where finding a power supply is difficult or expensive.
Compatible with the GoPro HERO5, HERO6, HERO7 and HERO8 camera models as listed below. For GoPro HERO4 and HERO3+ Black cameras, please use our Blink product.
|
Camera |
Compatibility ( Y / N ) |
|
HERO8 Black |
✔ |
|
HERO7 Black |
✔ |
|
HERO6 Black |
✔ |
|
HERO5 Black |
✔ |
|
HERO5 Session |
✔ |
|
HERO4 Black |
✘ |
|
HERO4 Silver |
✘ |
|
HERO4 Session |
✘ |
|
HERO (2014) |
✘ |
|
HERO3+ Black |
✘ |
|
HERO3+ Silver |
✘ |
|
HERO3 Black |
✘ |
|
HERO3 Silver |
✘ |
|
HERO3 White |
✘ |
|
HERO2 |
✘ |
|
HERO |
✘ |
Is BlinkX compatible with the GoPro Plus upload feature?
No. The following link outlines the options available for downloading footage from the GoPro camera during a time lapse when using our BlinkX time lapse controller: https://cam-do.com/pages/how-to-download-your-gopro-time-lapse-footage-with-blinkx
Can I have a time lapse and motion detection simultaneously?
Yes, BlinkX allows for multiple schedules to be active at a time.
What happens if there is a conflict between schedules?
If multiple schedules have been set and there is a conflict between the camera triggering time, priority is given to the lower numbered schedule. For example, schedule 1 has priority over schedule 2. While a schedule with a set duration is active, such as a video recording, any other schedule that is set to trigger will be skipped until the active schedule is complete.
How does BlinkX attach to the GoPro?
BlinkX uses a USB-C connection to communicate with the GoPro camera. BlinkX is approximately the same height and width as the HERO7, and is designed to accommodate straps to attach to the camera or to our enclosures.
What are the dimensions of BlinkX?
BlinkX measures 64.5x44x12.7mm (2.54"x1.73"x0.5").
What housings does CamDo offer that have space for BlinkX and external battery packs?
BlinkX is typically used with our Outdoor Enclosures to also house extra batteries and come with two power options, a 9Watt solar panel, or without a solar panel that is normally used for shorter deployments when you can return regularly to recharge the batteries. The Outdoor Enclosures have space to fit up to two of our V44 (44watt-hour) battery packs.
How long will the battery last if I shoot some number of photos per hour?
Calculating battery life is non-trivial. It depends on the camera model, firmware version, SD card speed, lighting conditions, battery size, age of the battery, ambient temperature, and more. To help you understand the issues and to calculate estimated battery life, consult the Camera Power Consumption Study and our Time Lapse Calculator.
If I know approximately how long my project is, how do I determine the ideal interval between triggers?
The ideal shooting interval is normally determined by the length of the final time lapse video clip, capacity of the SD card or battery capacity available. Our Time Lapse Calculator can be used to help determine the ideal interval between photos as determined by these variables.
Why is "Always On" mode for batteries important?
Since BlinkX turns the camera off between triggers to conserve power, Always On mode is important to prevent the battery from automatically turning off due to periods of inactivity. Most of the USB battery packs on the market have an automatic power saving feature which turns off the battery if the battery is not constantly supplying power to a device. If the GoPro is turned off for more than a few minutes between triggers, the external battery might automatically shutdown due to inactivity. However, our V44 has two modes of operation, the standard Auto Off mode and an Always On mode. The Always On mode prevents the battery from automatically turning off when insufficient current is being drawn due to the camera being turned off by BlinkX to conserve power.
Does BlinkX retain the shooting schedule when power is removed or lost?
When all power is removed, BlinkX will retain the programmed shooting schedule as well as the clock time and date settings. When power is restored to BlinkX, it will resume the programmed shooting schedules.
Can I switch the SD card in the middle of a time lapse schedule?
Yes, the SD card is "hot swappable". If an interval occurs when the SD card is out of the GoPro, BlinkX will continue the shooting schedule by triggering the camera to turn on and off, however, no image will be taken since there is no SD card to save the image to.
How do I change BlinkX's shooting schedule in the middle of a project?
BlinkX's WiFi signal can be turned on or off by pressing the on-board WiFi button for 3 seconds. BlinkX's WiFi only remains active for 15 minutes to program the new settings before the WiFi is automatically turned off to conserve power. If the camera is not easily accessible, we offer a Wired Remote that can be attached to BlinkX's 2.5mm Port1 for re-triggering the WiFi signal, as well as 2.5mm Extension Cables if a longer distance trigger is needed.
What can I connect to the circular jacks on my BlinkX?
Please connect only CamDo-approved accessories to these jacks unless you are experienced. Do not connect other equipment, especially voltage sources such as your solar panel or battery, to these jacks. Doing so could damage your BlinkX or camera.
BlinkX's Port1 is used as an alternate trigger to activate the Blink's WiFi signal via a wired remote (purchased separately).
BlinkX's Port2 is used for Motion Detection operation and information about this port is located in our Blink User Manual.
Please read our series of blog posts to understand how to connect custom hardware or interface a microcontroller such as an Arduino or Raspberry Pi.
Does BlinkX work with your Battery Eliminators?
BlinkX does not require a Battery Eliminator and it is not compatible with our Battery Eliminators which are for earlier generation cameras.
What does BlinkX weigh?
BlinkX weighs 19g. This compares to a GoPro HERO5 Black camera at 117g or the GoPro HERO5 Session at 74g.
General support can be found on our Support pages here.
Also read the FAQ's tab for more information.
Discontinued
Product Code: PS-004
THIS PRODUCT IS DISCONTINUED. Purchase the all-new Blink, which has the same features and more!
The CamDo GoPro Programmable Scheduler combines the functions of the CamDo Time Lapse Intervalometer with a programmable timer capable of storing 17 separate programs for shooting long term time lapse sequences or video at specific times on specific days.
For time lapse, the CamDo Scheduler Control is designed to turn the GoPro camera on and off to maximize the battery life. In most cases, the camera will take about 2,000 images on a single battery charge (750 on the Hero3 Black). These images can be spread over hours, days or even weeks without recharging the battery.
The ability to schedule the beginning and end times of the time lapse function lets the photographer program time lapse sequences to be shot during certain hours of the day, every day or every business day. Or, it can be used to schedule the start of a time lapse sequence up to one week ahead.
Examples:
For video, the scheduler can be programmed to shoot short video clips at multiple desired times, or to turn the GoPro camera on and shoot for several hours starting at a predetermined time after a delay of up to one week.
Examples:
NOTE: HERO4 compatibility can only be achieved through a custom firmware modification to the camera. The firmware modification is explained in detail here.
You are strongly advised to use an SD card from the recommended list on GoPro's website. Use of cards not on the list, especially SanDisk Ultra cards, will greatly increase your chance of trouble with your setup.Intervalometer Features included on Programmable Scheduler
No Additional Battery Required
Compatible with the GoPro camera with a HERO Port connector on the back of the camera (with the exception of the HERO3 Silver).
|
Camera |
Compatibility ( Y / N ) |
|
HERO5 |
✘ |
|
HERO5 Session |
✘ |
|
HERO4 Black |
✔* |
|
HERO4 Silver |
✔* |
|
HERO4 Session |
✘ |
|
HERO (2014) |
✘ |
|
HERO3+ Black |
✔ |
|
HERO3+ Silver |
✔ |
|
HERO3 Black |
✔ |
|
HERO3 Silver |
✘ |
|
HERO3 White |
✔ |
|
HERO2 |
✔ |
|
HERO |
✔ |
* HERO4 compatibility can only be achieved through a custom firmware modification to the camera. The firmware modification is explained in detail here.
With the current GoPro firmware, the Intervalometer can turn the HERO3 Black, HERO3+, and HERO4 cameras on, but it cannot turn them off. The camera must be programmed to turn off after taking a photo or shooting a video of the desired length using scripts which are installed on the SD card. This allows for considerable flexibility in deciding what the camera will do when triggered by the Intervalometer. Sample HERO3+ and HERO3 Black scripts can be seen here. HERO4 scripts are structured differently, and their feature set can be seen here.
Scripts are not required for HERO2 or HERO3 White cameras.
Learn how to use your Programmable Scheduler and get all the info you'll need here. View Product Documentation >
Setting Up Your Programmable Scheduler:
Is the Scheduler Waterproof?
The Scheduler itself is not waterproof and does not fit inside the GoPro waterproof housings. It needs to be sheltered from the elements. The Scheduler can be attached to the camera when it is in a GoPro housing with the back removed.
CamDo offers an Outdoor Weather Resistant Enclosure designed to house the Programmable Scheduler and other CamDo controllers along with space for a high capacity battery.
How long will the battery last if I shoot some number of photos per hour?
Calculating battery life is non-trivial. It depends on the camera model, firmware version, SD card speed, lighting conditions, battery size, age of the battery, ambient temperature, and more. To help you understand the issues and to calculate estimated battery life, consult the Camera Power Consumption Study and our Time Lapse Calculator.
Does the Scheduler work with your Battery Eliminators?
We recommend using the Scheduler with a HERO3/3+ Battery Eliminator. There is a slot in the back of the scheduler for the Battery Eliminator cable to pass through.
Using the Battery Eliminator reduces heat from the camera battery and charging circuit. A Battery Eliminator also bypasses the problems that some users have had with the GoPro charging logic when charging from the camera’s USB port causing the camera to freeze and require a reset.
Our HERO4 Battery Eliminator uses the same HERO Port as the Scheduler. Therefore the two items cannot be used together. Charging a HERO4 would need to be done using the camera’s mini-USB port.
Can a solar panel be used to extend the operating time?
The shooting time can be extended using a USB battery pack or AC charger attached to the camera. A solar powered battery pack can be used to shoot until the SD card is full.
CamDo offers a complete solar system including the solar panel, a 4000 mAH battery, and a weather resistant enclosure.
For information about the camera power consumption, battery requirements, and solar energy considerations, consult our Camera Power Consumption Study and our Time Lapse Calculator.
Can I download images via USB while using the Scheduler?
Yes, this works very well with the Hero3 Black & White cameras. A long USB cable can be permanently connected to the camera. Plug the USB cable into a computer. The images can now be moved from the SD card to your hard drive. When you unplug the USB cable from the computer, the camera will turn off. The scheduler will resume shooting with the next image. There is no need to touch the camera. The USB cable can be plugged into a charger or large battery pack while shooting for longer battery life.
We stock a 10 foot USB cable that has been tested to work for charging and downloading.
What do our customers use our Programmable Scheduler for?
It delights us to hear from happy customers who have used the Programmable Scheduler to take photos and videos in interesting ways.
Sometimes it is not possible to be there when you want to shoot a video. Matt Harman of Shorealone Films set up the Programmable Scheduler to shoot this video.
“I used the scheduler in 0110 mode to record the lift off of the Delta 4 Heavy. We set up the day before launch and I had it programmed to turn on 2 mins before the launch window opens, just to be safe in case of any problems, and then at 12:00 when the window closed to power off and stop recording. As you can see from the video it's not safe to be standing anywhere near that rocket when it goes off. I'm just happy it wasn't incinerated like the hillside behind it. The CamDo Scheduler allows me to record impossible video from anywhere right on time.”
I will be buying more...thank you for all your programing skills..... -MH
Lance Hastie in Christchurch New Zealand used the Programmable Scheduler to film the construction of an ice rink in a parking lot for the school holidays.
“I used the Programmable Scheduler set for 5 minute intervals to film the time lapse sequences in this clip. It was remote powered via the USB port to keep the battery charged from a 12V SLA feeding a 5V regulator. One charged SLA lasts 10 days safely operating 7:30am to 6pm, at 5min photo image cycles. All worked perfectly.” -LH
Jérôme Balleydier of Aérographe in Réunion Island created a 3 month time lapse of the construction of a solar energy generation site with the CamDo Solar powered system.
Zirriborro TV in Bilbao, Spain, have been using two PS-003 Programmable Schedulers to document the transformation of the Tabakalerako Tobacco building into a culture center.
Marco Zecchin Photographic Art in California, uses a PS-003 with a Hero3+ to shoot time lapse videos of construction projects like this one.
Discontinued
Product Code: CTL01 (Naked)
TL-004A (Acrylic)
We now have limited stock of the Naked Time Lapse Intervalometer (TL-004N) which is suitable for older GoPro cameras. If you are using a HERO3+ or HERO4 cameras, we suggest purchasing the all-new Blink, which has the same features but has more programming flexibility and is configurable using a simple Web Interface and more!
The Intervalometer is a small high quality circuit board that plugs into the HERO Port on the back of the GoPro camera. The Intervalometer is small enough to fit inside the GoPro HERO3 Frame Mount or the extended back doors provided with the GoPro accessories such as the GoPro LCD BacPac or the GoPro Battery BacPac.
In the time lapse operating mode, the Intervalometer can be programmed to turn the camera on at a regularly spaced interval so that the GoPro can capture an image or video before turning the camera off to maximize the battery life. In most cases, the camera will take about 700 images on a single battery charge (2,000 on the HERO2). These images can be spread over hours, days or even weeks without recharging the battery.
The Intervalometer has multiple operating settings and input/output pins that allow for the board to be applicable to various custom solutions. Read more about the Intervalometer's other features for advanced applications here.
Note that the Intervalometer is only capable of turning on the HERO3 Black and newer GoPro cameras but not off. Functionality on these cameras is achieved through the use of our scripts saved to the SD card. The scripts are normally used to take a picture or record for a set amount of time before turning the camera off so that it can be re-triggered by the controller. (Blink can control the power, mode, and shutter functions of the HERO3+ and HERO4 cameras without scripts)
Compatible with the GoPro camera with a HERO Port connector on the back of the camera (with the exception of the HERO3 Silver).
|
Camera |
Compatibility ( Y / N ) |
|
HERO5 |
✘ |
|
HERO5 Session |
✘ |
|
HERO4 Black |
✔* |
|
HERO4 Silver |
✔* |
|
HERO4 Session |
✘ |
|
HERO (2014) |
✘ |
|
HERO3+ Black |
✔ |
|
HERO3+ Silver |
✔ |
|
HERO3 Black |
✔ |
|
HERO3 Silver |
✘ |
|
HERO3 White |
✔ |
|
HERO2 |
✔ |
|
HERO |
✔ |
* HERO4 compatibility can only be achieved through a custom firmware modification to the camera. The firmware modification is explained in detail here.
With the current GoPro firmware, the Intervalometer can turn the HERO3 Black, HERO3+, and HERO4 cameras on, but it cannot turn them off. The camera must be programmed to turn off after taking a photo or shooting a video of the desired length using scripts which are installed on the SD card. This allows for considerable flexibility in deciding what the camera will do when triggered by the Intervalometer. Sample HERO3+ and HERO3 Black scripts can be seen here. HERO4 scripts are structured differently, and their feature set can be seen here.
Scripts are not required for HERO2 or HERO3 White cameras.
How long will the battery last if I shoot some number of photos per hour?
Calculating battery life is non-trivial. It depends on the camera model, firmware version, SD card speed, lighting conditions, battery size, age of the battery, ambient temperature, and more. To help you understand the issues and to calculate estimated battery life, consult the Camera Power Consumption Study and our Time Lapse Calculator.
I want to shoot a 4 minute video of a 4 month construction job. How do I do that?
You want each month to be one minute of video. That is about 2 seconds per day, or 60 frames at 30fps. Shooting 24 hours a day, that is one shot every 24 minutes, or about one shot every 10 minutes if you only care about the daytime (acquiring shots for daytime only can be done using our Blink Controller or by removing nighttime shots during post-production). Our Time Lapse Calculator can be used to estimate the SD card and power requirements based on your setup.
In practice, things go wrong. The camera can stop working. The battery might not have been fully charged. The SD card may have a flaw. A bird dropping might block the lens. We never recommend leaving the camera unchecked for more than a few days. Always assume that what can go wrong, will go wrong. Use two cameras to get different angles and to provide backup if something happens to one camera.
I only want to shoot from 9 to 5, Monday through Friday. How can I best do that?
Our Blink product is designed for that purpose. It is easy to set up to capture an image or video at certain times or to enable time lapse captures on a specific schedule.
Does the Intervalometer retain its settings when I remove it from the camera?
Yes, the settings are stored in flash memory and will be retained until you program different settings or do a factory reset.
Does the Intervalometer board fit inside the waterproof case?
The Intervalometer does not fit in the housing shipped with the camera. It fits in the extended backdoors provided with the GoPro accessories such as the GoPro LCD Bacpac or the GoPro Battery BacPac.
The TL Controller fits in the GoPro HERO3 Frame Mount, which comes with 2 frames, one for the camera alone, and one which holds the camera and BacPac accessories, such as the Battery BacPac and the CamDo Time Lapse Intervalometer. Be careful, if buying on eBay, where you might not get both together.
Another simple way to secure the camera and Controller board in the standard case for use indoors or in good weather, is to use an O-ring or a rubber band to hold the camera in the case with no backdoor. Pictured is an AS568-134 O-ring which fits nicely.
Do you have a weather resistant enclosure to also house battery packs?
CamDo offers an Outdoor Weather Resistant Enclosure designed to house the HERO3, HERO3+ or HERO4 cameras with the Time Lapse Intervalometer or other CamDo controllers along with space for a high capacity battery packs.
Can a solar panel or AC power source be used to extend the operating time?
The cameras can be powered by external batteries charged from a solar panel or another suitable power source.
The CamDo Solar System includes a solar panel, high powered lithium battery, and a weather resistant enclosure. Our Time Lapse Calculator can be used to determine if a 6Watt or 9Watt solar panel would theoretically be able to keep your system running continuously throughout your project.
Does the Intervalometer work with your Battery Eliminators?
The Intervalometer utilizes the HERO Port on the back of the camera so it cannot be used at the same time as the HERO Port Battery Eliminator.
When using the Intervalometer with HERO3 or HERO3+ camera, we strongly recommend using an H3 Battery Eliminator. There is a slot in the back of the Acrylic Intervalometer for the H3 Battery Eliminator cable to pass through.
Using the Battery Eliminator reduces heat from the camera battery and charging circuit. A Battery Eliminator also bypasses the problems that some users have had with the GoPro charging logic when charging from the camera’s USB port causing the camera to freeze and require a hard reset.
I am a hacker. Can I use the extra connections on the board to trigger the camera?
Yes! If you have a little knowledge of electronics, you can use the Intervalometer Naked PC board to trigger the camera. The interface is documented in the CamDo Intervalometer Application Notes for Advanced Users. It is actually quite easy to connect external triggers such as mobile phones, Android devices, computers, motion detectors, intervalometers, programmable timers, security systems, accelerometers that detect motion, or to configure the camera to start automatically whenever the car ignition is turned on.
I am a not a hacker. I have an idea for a project for our organization. Can you help?
Yes. The Intervalometer board was originally designed to handle custom projects we built for scientists and professional photographers. It is very flexible and can be reprogrammed to respond to different kinds of control inputs. It also has an optically isolated output which can be used to control lighting, or give different types of feedback. Contact us for a quote for your application. Our rates for custom firmware are very reasonable.
I know how to write code for the MSP430 processor. Can I reprogram the chip with my own firmware?
Yes. The SBW interface is brought to the edge of the board, so you can use the Texas Instruments Launchpad ($4.30) to program the device. There is a tutorial: Use your launchpad as a programmer. Let us know if you come up with something really brilliant!
What do our customers use our Intervalometer for?
It delights us to hear from happy customers who have used the Intervalometer to take photos and videos in interesting ways. We have been even more delighted to see customers returning to order multiple units on their second order.
Tell us what you used your Time Lapse Intervalometer for!
Canterbury Earthquake Recovery (Lance Hastie)
General support can be found on our Support pages here.
Average GoPro recording times in each video setting
Also read the FAQ's tab for more information.
Discontinued
Product Codes: MD-003XX (X-Band)
MD-003PX (PIR)
This product is available while supplies last and has been replaced by our new Blink time lapse and motion detection controller. Motion detectors compatible with Blink are available here.
Please note that this X-Band Motion Detector (MD-003XX) is not compatible with Blink.
Motion detection can be used for security camera applications, wildlife photography, and for recording events where a person or other object, such as a car or truck, moves past the camera from time to time.
The GoPro Controller is a small high quality circuit board that plugs into the HERO Port on the back of the GoPro cameras. It is small enough to fit inside the extended back doors provided with the GoPro accessories such as the GoPro LCD BacPac or the GoPro Battery BacPac.
The CamDo Motion Detector control board is configured to trigger the camera using the output from an active doppler X-Band Microwave Motion Detector. The detector is powered by a regulated power supply on the controller board which converts the camera battery voltage to a regulated 5 volt supply.
The Motion Detector controller board can be purchased separately from our sensors for use with a different motion detector, proximity detector, or other sensing device you may already have. The board includes a 5 volt power output for use in powering accessories using the camera battery and the firmware for motion detection or triggering as described in the operating manual.
The X-Band detector board measures 1.8” x 1.6" (46mm x 41mm).
NOTE: HERO4 compatibility can only be achieved through a custom firmware modification to the camera. The firmware modification is explained in detail here.
You are strongly advised to use an SD card from the recommended list on GoPro's website. Use of cards not on the list, especially SanDisk Ultra cards, will greatly increase your chance of trouble with your setup.Capture Triggers
Programming Flexibility
External Output
No Additional Battery Required
Compatible with the GoPro camera with a HERO Port connector on the back of the camera (with the exception of the HERO3 Silver).
|
Camera |
Compatibility ( Y / N ) |
|
HERO5 |
✘ |
|
HERO5 Session |
✘ |
|
HERO4 Black |
✔* |
|
HERO4 Silver |
✔* |
|
HERO4 Session |
✘ |
|
HERO (2014) |
✘ |
|
HERO3+ Black |
✔ |
|
HERO3+ Silver |
✔ |
|
HERO3 Black |
✔ |
|
HERO3 Silver |
✘ |
|
HERO3 White |
✔ |
|
HERO2 |
✔ |
|
HERO |
✔ |
* HERO4 compatibility can only be achieved through a custom firmware modification to the camera. The firmware modification is explained in detail here.
With the current GoPro firmware, the Intervalometer can turn the HERO3 Black, HERO3+, and HERO4 cameras on, but it cannot turn them off. The camera must be programmed to turn off after taking a photo or shooting a video of the desired length using scripts which are installed on the SD card. This allows for considerable flexibility in deciding what the camera will do when triggered by the Intervalometer. Sample HERO3+ and HERO3 Black scripts can be seen here. HERO4 scripts are structured differently, and their feature set can be seen here.
Scripts are not required for HERO2 or HERO3 White cameras.
Learn how to use your Motion Detector Controller and get all the info you'll need here.
Frequently Asked QuestionsAre the motion detectors compatible with the new HERO4 camera?
The motion detector is compatible with all GoPro HERO cameras, except the HERO3 Silver and the entry level grey HERO cameras. The HERO4 solution requires the use of GoPro’s most recent firmware in addition to a firmware patch provided by CamDo, which will be emailed to you after you purchase your product.
If you do not require a product configuration immediately, you may also be interested to know that we’re in the process of creating a great product that will replace three of our most powerful products: Programmable Scheduler, Time Lapse Intervalometer and Motion Detector. This product will have a WIFI chip that enables the user to control the camera through a web based UI. We hope to have this available this winter.
What is the difference between the PIR and X-Band Motion Sensor?
The PIR Sensor detects movement by registering the change in infrared emissions from a warm body by comparing multiple panels in its view. Therefore it detects warm objects moving across the sensor, side to side or up and down. The X-Band sensor uses doppler detection of microwaves bounced off the object and is triggered by motion towards or away from the sensor.
Infrared can pass through some thin transparent or translucent plastics, but in general, not through glass. Microwaves pass through opaque plastics and glass, but not metal. The moving object does not need to be warm to trigger the sensor.
Can I use more than one sensor?
Yes. Multiple sensors can be connected in a logical OR so that any one sensor will trigger the camera. This means that multiple sensors of different types, including sensors from other suppliers in many cases, can be placed in different locations in order to trigger the camera more reliably or in advance of an animal moving into a scene.
Does the controller board fit inside the waterproof case?
The board does not fit in the standard case. The board fits in the extended backdoors provided with the GoPro accessories such as the GoPro LCD Bacpac or the GoPro Battery Bacpac. A small hole can be drilled into the housing to allow the sensor’s wires to pass through the housing.
A simple means of securing the camera with the controller board in the standard case for use indoors or in good weather, is to use an O-ring or a rubber band to hold the camera in the case with no backdoor. Pictured is an AS568-134 which fits nicely.
Outdoor Weather Resistant Enclosure
CamDo now offers an Outdoor Weather Resistant Enclosure designed to house the Motion Detector and other CamDo controllers along with space for a high capacity battery.
The X-Band detector fits inside the weather resistant case and does not require any hole in the case for installation.
A case for the PIR detector will have an additional opening for the PIR detector lens.
How can I setup the motion detector to only trigger during the day?
It is possible to use a simple photocell to prevent triggering at night. If you have a slight knowledge of soldering, you will probably be able to follow the instructions in the Application Notes.
I am a hacker. Can I use the cable on the board to trigger the camera using other devices?
Yes! If you have a little knowledge of electronics, you can use the controller board to trigger the camera. The interface is documented in the CamDo Controller Application Notes for Advanced Users. It is actually quite easy to connect external triggers such as motion detectors, intervalometers , security systems, or to configure the camera to start automatically whenever the car ignition is turned on, for example.
I am a not a hacker. I have an idea for a project for our organization. Can you help?
Yes. The controller board was originally designed to handle custom projects we built for scientists and professional photographers. It is very flexible and can be reprogrammed to respond to different kinds of control inputs. It also has an opto-isolated output which can be used to control lighting, or give different types of feedback. Contact us for a quote for your application.
I know how to write code for the MSP430 processor. Can I reprogram the chip with my own firmware?
Yes. The SBW interface is brought to the edge of the board, so you can even use the Texas Instruments Launchpad ($4.30) to program the device. There is a tutorial: Use your launchpad as a programmer. Let us know if you come up with something really brilliant!
Discontinued
Product Code: (Acrylic + Cable) - CVA01
The GoPro Video Monitor Adapter plugs into the connector at the back of all GoPro HD HERO, HERO2, HERO3, HERO3+, and HERO4 cameras. The adapter provides 480i SD composite video compatible with all LCD and CRT monitors and video transmitters and receivers.
The CamDo video adapter for the GoPro camera converts the signal normally displayed on the GoPro LCD BacPac to a composite video signal which can be displayed on any monitor with a composite video input.
With a large display, separate from the camera, you can easily frame your image and navigate the GoPro menus to set up for a shoot.
 |
The Naked PCB version is fully assembled, programmed, and ready to use. Just connect your own video cable and plug the board into the camera. |
 |
The Naked PCB + Cable version includes a short coax cable with a male RCA plug compatible with most consumer video devices. |
 |
The Acrylic + Cable version is enclosed in a custom made acrylic enclosure which fits comfortably in the GoPro extended backpacs and includes the cable with RCA connector. |
Compatible with all video transmitters.
The composite video signal can also be transmitted by any video transmitter to a compatible receiver for wireless remote viewing. Tiny video transmitters for R/C planes and quadcopters can be used in real time with no delay for FPV flying or just framing the image being captured by the GoPro camera in high definition.
Video Signal Transmission
Remote Trigger (available with PCB version)
External Output (available with PCB version)
No Additional Battery Required
|
Camera |
Compatibility ( Y / N ) |
|
HERO5 |
✘ |
|
HERO5 Session |
✘ |
|
HERO4 Black |
✔ |
|
HERO4 Silver |
✔ |
|
HERO4 Session |
✘ |
|
HERO (2014) |
✘ |
|
HERO3+ Black |
✔ |
|
HERO3+ Silver |
✔ |
|
HERO3 Black |
✔ |
|
HERO3 Silver |
✔* |
|
HERO3 White |
✔ |
|
HERO2 |
✔ |
|
HERO |
✔ |
Compatible with the GoPro camera with a HERO Port connector on the back of the camera.
* Trigger function not available on the HERO3 Silver.
Information about how to use the PCB Video Monitor Adapter’s trigger and LED pins can be found here.
View Application Notes for Advanced Users >
Frequently Asked QuestionsWhich models of GoPro cameras are compatible with the Video Monitor Cable?
All models of GoPro cameras equipped with a HERO Port connector on the back are compatible with the Cam-Do Video Monitor Cable. The original HERO 980 is not compatible. All other cameras including the HERO3+ and HERO4 models are compatible.
Does the adapter fit in the waterproof back?
The adapter fits inside the extended BacPacs provided by GoPro with the LCD display, battery BacPac and WiFi BacPac. The cable fits through the slot in the BacPack.
Can the adapter be used underwater?
A waterproof version for underwater use with a cable leading to the surface is currently in development. We have tested it to 30 feet with a 100 foot cable and will be doing more testing before offering this new product. It will probably come with a cable, a video output plug, and optionally the possibility of powering the camera from a 12 volt source and triggering the start and stop with a remote button. If such a product is of interest, please contact us to participate in the final design decisions by telling us how it would be useful for you.
Can the camera be powered by the adapter?
Charging via the video board works with HD HERO and HERO2 cameras. The adapter has connections for 5 volt USB power to keep the camera battery charged for long usage or to power the camera without the battery when trying to minimize weight. External power via the Adapter does not work with the HERO3 or HERO4 camera. For HERO3/3+, Battery Eliminators should be used. For HERO4, the USB power input should be used.
I bought the bare board, where do I connect the video out?
VIDEO For video out, connect a cable to the contacts at the lower right. No other connections or power supply are required.
LED An LED can be connected for visual indication of when the camera is on, or for telemetry in FPV systems, or feedback in automated control systems.
Trigger Closing a contact across the trigger connections briefly will turn on the camera. One button mode can be used to start filming. Super One Button Mode scripts can be used with HERO3 and HERO3+ cameras. CSI scripts are used for HERO4 cameras.
5V DC can be applied to power the GoPro camera.
If your board is a previous revision click here to see the connection diagram.
Discontinued
Product Code: IHB01
The GoPro 30 Pin HERO Port connectors fit all GoPro models with a HERO Port on the back of the camera. These connectors are ideal for the hobbyists who wish to build their own cables or experiment with the GoPro camera's HERO Port connection.Solder the pins by hand
Perfect for prototyping
|
Camera |
Compatibility ( Y / N ) |
|
HERO5 |
✘ |
|
HERO5 Session |
✘ |
|
HERO4 Black |
✔ |
|
HERO4 Silver |
✔ |
|
HERO4 Session |
✘ |
|
HERO (2014) |
✘ |
|
HERO3+ Black |
✔ |
|
HERO3+ Silver |
✔ |
|
HERO3 Black |
✔ |
|
HERO3 Silver |
✔ |
|
HERO3 White |
✔ |
|
HERO2 |
✔ |
|
HERO |
✔ |
Compatible with all GoPro cameras with the HERO Port at the back of the camera.
It looks just like my iPhone charger cable. Can I just use the one I have?
No! The iPhone/iPod cable has a very similar connector to the GoPro Port connector, but the connections are different. You will almost certainly damage the camera if you try to charge the camera with an iPhone cable.
iPhone connectors are actually a slightly different size from the GoPro connectors. Some knockoff connectors will fit the camera, but they may distort the GoPro’s HERO Port if forced.
Will the connectors fit inside the GoPro waterproof back doors?
Low profile design fits easily in any of the extended skeleton backdoors provided with the GoPro LCD Bacpac or the GoPro Battery Bacpac. accessories. The connector is narrow enough to fit inside the back door and the cable fits easily through the slot at the bottom. Alternatively, a hole can be cut in the back of the standard skeleton backdoor.
Where can I find documentation on the GoPro HERO Port interface?
The GoPro User Forum is the best place to find unofficial documentation discovered by users who were not afraid to take their cameras apart and poke around.
How are the pins numbered?
Discontinued
Product Codes: SOLAR-6W
SOLAR-9W
We offer a choice of a 6 watt or 9 watt solar panel. If your installation is an area where less than approximately 5.5 hours of sunshine is present each day, we recommend the 9W solar panel option which provides 50% greater capacity in harnessing the sun's energy. On the 9 watt option includes a V44 battery. The 6 watt option includes a V15 battery.
Our outdoor enclosure is fitted with a sturdy aluminum mounting bracket that contains multiple ¼"-20 threaded holes on the top, back, and bottom for use with standard tripod screws. It also has 2 slots at the back for using straps to attach the enclosure to a pole. The solar panel is removable and attached to the top of the enclosure using a dual ball socket arm so it can be positioned for optimum sun exposure. The solar panel charges the included Lithium Polymer battery which outputs 5 volts to power the camera or other accessories in a weatherproof enclosure.
We also offer a sturdy swivel mount for easy mounting to a pole or flat surface, check out the product page here.
The enclosures are designed to be crushproof and dust tight. Inside the weather resistant enclosure contains an aluminum bracket designed to hold the GoPro camera, and CamDo Controller board. It is possible to access the SD card, or USB connector without removing the camera. If the camera needs to be replaced, the fit is extraordinarily tight, guaranteeing that the camera will be in the exact same position as before. The interior has space for extra batteries or other accessories. The enclosure is fitted with a standard 55mm filter adapter and a neutral density UV optical glass “digital filter” is included. You can replace the filter with your filter of choice.
Our case has several mounting options for different situations. There are two ¼” locking holes, one on each side of the case, through which a padlock, bolts, or threaded rods can be used to secure the contents of the box.
There are 2 slots on the back of the aluminum mounting bracket which allow it to be easily attached to a pole or structure using straps such as hose clamps or zip ties. The tripod screw holes at the back of the bracket can then be used to angle the camera.
We also offer a high quality swivel mount bracket that can be added to your system which allows fantastic aiming flexibility. Read more here.
The aluminum mounting bracket has multiple tripod screw holes on the top, back, and bottom that can be used with any standard photographic tripod or mounting bracket with a normal tripod thread (¼"-20). ¼"-20 bolts are easily obtained from any hardware store if you are making your own mount. There are hundreds of different compatible mounting brackets and magic arm brackets.
6Watt Solar Panel
9Watt Solar Panel
|
Camera |
Compatibility ( Y / N ) |
|
HERO5 |
✘ |
|
HERO5 Session |
✘ |
|
HERO4 Black |
✔ |
|
HERO4 Silver |
✔ |
|
HERO4 Session |
✘ |
|
HERO (2014) |
✘ |
|
HERO3+ Black |
✔ |
|
HERO3+ Silver |
✔ |
|
HERO3 Black |
✔ |
|
HERO3 Silver |
✔ |
|
HERO3 White |
✔ |
|
HERO2 |
✘ |
|
HERO |
✘ |
Compatible with the GoPro HERO3, HERO3+ and HERO4 cameras.
Which CamDo Solar System is right for my GoPro camera?
Our currently available Solar-6W and Solar-9W products are compatible with Hero3, Hero3+ and Hero4 cameras. Refer Compatibility tab.
How do I setup my system?
View the Solar Power System set-up guide here.
How long does it take to charge the battery?
In direct sun, the V15 (4,000 mAH Lithium Polymer battery) will fully charge in approximately 5.5 hours using the 6W solar panel. Where the weather is frequently cloudy/raining we recommend the 9W solar panel option. The battery system incorporates protection against overcharging, over discharge, over current (short circuit), unusual voltage input, and temperature extremes.
Will the solar panel be able to keep my time lapse running indefinitely?
This would depend on the shooting cycle used and the sun exposure available in your location. We advise all customers to calculate their battery needs due to the many variables. We have a Time Lapse Calculator that can be used to help determine your ideal shooting interval and how long your battery should theoretically last using our controller boards and batteries. The Calculator also gives the rate at which the solar panel should be able to recharge your battery at your given location and with the panel angle that is used. Keep in mind that temperature, battery fatigue, and other electrical inefficiencies will prevent the camera from using the full battery capacity.
What is the original dust and water ingress rating of your enclosures? Can I submerge your Solar or DRY enclosures?
The enclosures have an IP67 rating prior to installation of CamDo accessories. Our Solar and DRY enclosures are not meant to be immersed in water.
How long will the battery last before it is discharged?
It depends on many factors including your latitude, the amount of sun and cloud during your shoot, the controller you are using, the camera you are using and the shooting schedule you have programmed. There are too many variables to give a perfect answer but we have created a Time Lapse Calculator to work out the best setup for your shoot in your location.
This uses our analysis of the power consumption of the various GoPro cameras and provides an explanation of how to calculate the theoretical battery life.
Practically, we have run the system indefinitely taking one picture every 15 minutes with the WiFi on, in Canada in the summer.
Why is "Always On" mode for batteries important?
Since our controllers turn the camera off between triggers to conserve power, Always On mode is important to prevent the battery from automatically turning off. Most of the USB battery packs on the market have an automatic power saving feature which turns off the battery if the battery is not constantly supplying power to a device. If the GoPro is powered off for more than a few minutes between triggers, the external battery might automatically shutdown due to inactivity. However, our V15 and V44 have two modes of operation, the standard Auto Off mode and an Always On mode. The Always On mode prevents the battery from automatically turning off when insufficient current is being drawn due to the camera being powered off.
Refer to our support page here to make sure you are in "Always On" mode when setting up your system. Refer Step 2 of the guide.
Make sure to disconnect the battery from all devices to check this. If you hold down the power button for six seconds and the charge indicator flashes 3 times and stays lit for a second or two, you are now in Always On mode. If you hold down the power button for six seconds and the charge indicator flashes 3 times and then goes dark straight away, you are in Auto Off mode.
How can I avoid condensation on the lens?
Our enclosures have an integrated auto-pressure valve that equalizes the atmospheric pressure difference to reduce condensation. The IP67 micro vent allows air to pass through while preventing water from entering. If you need additional protection against condensation, the extra space in the solar enclosure allows for one or more sacks of desiccant to be inserted in the box. For even more protection, there are some products available to coat the lens, such as those used on ski-goggles. The standard 55mm threaded lens filter can also be replaced with another 55mm threaded lens that already has anti-fog characteristics or coating.
TIP: Condensation is a result of humid air being sealed in the box when you close it and condensing when there is a temperature change. Try to close the box in as dry an environment as possible. If you need additional protection against condensation, the extra space in the solar enclosure allows for one or more sacks of desiccant to be inserted in the box. For more information, Google for avoiding condensation in underwater cameras, where the problem is discussed at length by many experienced photographers.
Can I lock the case?
There are two ¼” locking holes, one on each side of the case, through which padlocks, bolts, or threaded rods can be used to secure the contents of the box.
Is it possible to separate the solar panel from the box?
Yes. The solar panel is removable and has a 4ft charging cable that enters the enclosure through a waterproof cable gland at the bottom of the enclosure.
Can I mount the solar panel remotely from the enclosure?
Yes. However, if you need to place the panel remotely from the enclosure, attention must be paid to the gauge of wire used to connect the solar panel to the battery. The connectors on the solar panel cable are 3.5mm outer diameter, 1.1mm inner diameter barrel power connectors. So you'll need one end male (M3.5x1.1), the other one end female (F3.5x1.1). A local electronics store will have these connectors. We recommend using the largest cable that can physically fit into the particular connector you source to minimize voltage drop from the panel to the battery. The voltage drop must not exceed 0.5 volts. A 16 AWG or larger wire is recommended for distances exceeding a few feet.
Which cables and adapters come with the system and what do I use to connect the battery to the solar panel?
The system comes with all necessary cables along with a number of useful adapters for charging phones and other cameras as well as the cables used to charge the battery.
Refer Step 6 of our Solar Setup Guide.
Can I use this system to charge other devices as well?
Absolutely. The V44 battery that comes with the new 9W system (or can be purchased separately) has 2 USB outputs. One can be used to charge or run other devices while the 2A output is used to charge the GoPro camera. The V15 only has 1 output, but, if the camera is running off its own battery, it can be unplugged to use the V15 battery.
Can your systems be used for other purposes than GoPro cameras?
Yes. You can remove the GoPro mounting fixture to provide extra space for your equipment. The solar panel, battery, and enclosure can be used for your custom system or just used as a remote charging station for phones and other USB chargeable devices.
Does the enclosure O-Ring seal require special care?
The case is equipped with a hollow core EPDM gasket that has been designed to give superior performance and resist compressive deformation over time. To ensure a watertight seal, the gasket must be free of cuts, abrasions or tears. Debris or foreign material caught between the sealing rib on the bottom of the case and the gasket on the top of the case will prevent the case from sealing properly. A coat of an automotive type surface protector is recommended to help prevent dirt and debris from sticking to the seal. If the seal becomes damaged a replacement seal can be ordered from Cam-Do.com.
Special care should be taken to ensure that wires or cables do not get trapped in the door when it is closed. The power-claw latches can exert extreme force, resulting in damage to the cable and the O-ring seal.
General support can be found on our Support pages here.
The CamDo Blink controller board is typically used with our Solar Enclosures to provide programming flexibility while significantly reducing power consumption. Information on Blink can be found on the following pages:
Also, read the FAQ's tab for more information.
Discontinued
Product Code: DW-H3
CamDo can now provide a professional grade underwater housing suitable for deep water and extreme environments, such as for munitions testing or in air or water containing corrosive chemicals. The Deep Water Housings have room for the GoPro camera and space for either a GoPro Battery BacPac or the CamDo Time Lapse Intervalometer.
The housing is carved from a solid block of aluminum and has been tested to withstand pressures of 5,000 ft (1.500m, 152 ATM, 154 BAR), or 2,300 PSI (157 Kg/cm2).
The anodized aluminum is resistant to saltwater and harsh environments.
The time lapse Intervalometer can be used to start the camera after a fixed time delay, allowing ample time for deployment and starting to shoot video, or still photos when the camera reaches the bottom. In time lapse mode, hundreds of photos can be shot over several days on a single battery charge.
Due to the thickness of the glass lens, some cropping occurs, a small price to pay for an enclosure suitable for long term immersion in deep water.
Please note that our Deep Water products may not be purchased for resale to third parties.
Chemical Resistant
Rated for Deepwater use
Room for a GoPro bacpac accessory
|
Camera |
Compatibility ( Y / N ) |
|
HERO5 |
✘ |
|
HERO5 Session |
✘ |
|
HERO4 Black |
✔ |
|
HERO4 Silver |
✔ |
|
HERO4 Session |
✘ |
|
HERO (2014) |
✘ |
|
HERO3+ Black |
✔ |
|
HERO3+ Silver |
✔ |
|
HERO3 Black |
✔ |
|
HERO3 Silver |
✔ |
|
HERO3 White |
✔ |
|
HERO2 |
✘ |
|
HERO |
✘ |
Compatible with the GoPro HERO3 and HERO4 cameras.
Information about how to use the housings, care, and maintenance is in the Deep Water Housing User Manual. Read this information before using the housing. It is prudent to test the housing without a camera before deploying for the first time.
How long will the battery last before it is discharged?
The Intervalometer can be used to extend the battery life. How long the battery will last depends on many factors such as the camera you are using and the shooting schedule you have programmed. There are just too many variables to give an accurate answer.
An analysis of the power consumption of the various GoPro cameras and an explanation of how to calculate the theoretical battery life is outlined on the GoPro Power Consumption page. Our Time Lapse Calculator page can be used to assist you in planning the interval times of your time lapse project.
For reference, in our own tests, a HERO3+ Black lasted 3 weeks shooting one shot per hour.
How large is the Deepwater Housing and what does it Weigh?
The HERO2 housing weighs 1 lb 2 oz (531 gr). The dimensions are: Length 3" 1/8 (8.3cm), Width 2" 3/8 (6.4cm), Height 2" 1/2 (6.6cm).
The HERO3/4 housing weighs 1 lb 1 oz (497 gr). The dimensions are: Length 3" 1/8 (8.3cm), Width 2" 3/8 (6.5cm), Height 2" 1/8 (5.4cm)
What are the Physical Properties and Chemical Composition of the Lens?
The lens in the deep water housing is made from borosilicate. The light transmission is about 87%. Optically, it's free of distortion. It is also unaffected by temperature change. It is heat resistant up to 800 C. (The camera isn't).
Chemical Composition:
- SiO2 = 80.6% Coefficient of expansion (20°C-300°C) 3.3 x 10-6 K-1
- B2O3 = 13.0% Density 2.23g/cm3
- Na2O = 4.0% Refractive index (Sodium D line) 1.474
- Al2O3 = 2.3% Dielectric constant (1MHz, 20°C) 4.6
Physical Properties:
- Specific heat (20°C) 750J/kg°C
- Refractive index (Sodium D line) = 1.474
- Thermal conductivity (20°C) 1.14W/m°C
- Visible light transmission, 2mm thick glass = 92%
- Poisson’s Ratio (25°C - 400°C) 0.2
- Visible light transmission, 5mm thick glass = 91%
- Young’s Modulus (25°C) 6400 kg/mm2
How much is the image cropped due to the thickness of the lens?
Pictured are images showing the cropping due to the lens.
Discontinued
Product Code: DW-H3-EXT
CamDo provides a professional grade underwater housing suitable for deep water and extreme environments, such as for munitions testing or in air or water containing corrosive chemicals. The Housing Extension can be inserted between the front faceplate and the deepwater housing. This gives extra inches of space behind the camera for accessories or additional batteries.
The housing extension is carved from a solid block of aluminum and has been tested to withstand pressures of 2,300 psi (157 kg/cm2), equivalent to a depth of 5,000 feet. The anodized aluminum is resistant to saltwater and harsh environments.
The extension adds 2 inches (5 cm) of additional space behind the camera.
Please note that our Deep Water products may not be purchased for resale to third parties.
Chemical Resistant
Rated for Deepwater use
Extend capacity of the Deepwater Housing
|
Camera |
Compatibility ( Y / N ) |
|
HERO5 |
✘ |
|
HERO5 Session |
✘ |
|
HERO4 Black |
✔ |
|
HERO4 Silver |
✔ |
|
HERO4 Session |
✘ |
|
HERO (2014) |
✘ |
|
HERO3+ Black |
✔ |
|
HERO3+ Silver |
✔ |
|
HERO3 Black |
✔ |
|
HERO3 Silver |
✔ |
|
HERO3 White |
✔ |
|
HERO2 |
✘ |
|
HERO |
✘ |
Compatible with the GoPro HERO3 and HERO4 cameras.
Information about how to use the housings, care, and maintenance is in the Deep Water Housing User Manual. Read this information before using the housing. It is prudent to test the housing without a camera before deploying for the first time.
How long will the battery last before it is discharged?
The Intervalometer can be used to extend the battery life. How long the battery will last depends on many factors such as the camera you are using and the shooting schedule you have programmed. There are just too many variables to give an accurate answer.
An analysis of the power consumption of the various GoPro cameras and an explanation of how to calculate the theoretical battery life is outlined on the GoPro Power Consumption page. Our Time Lapse Calculator page can be used to assist you in planning the interval times of your time lapse project.
For reference, in our own tests, a HERO3+ Black lasted 3 weeks shooting one shot per hour.
Discontinued
Product Code: DW-H2
CamDo provides a professional grade underwater housing suitable for deep water and extreme environments, such as for munitions testing or in air or water containing corrosive chemicals. The Deep Water Housings have room for the GoPro camera and space for either a GoPro Battery BacPac or the CamDo Time Lapse Intervalometer.
The housing is carved from a solid block of aluminum and has been tested to withstand pressures of 5,000 ft (1.500m, 152 ATM, 154 BAR), or 2,300 PSI (157 Kg/cm2).
The anodized aluminum is resistant to saltwater and harsh environments.
The time lapse Intervalometer can be used to start the camera after a fixed time delay, allowing ample time for deployment and starting to shoot video, or still photos when the camera reaches the bottom. In time lapse mode, hundreds of photos can be shot over several days on a single battery charge.
Due to the thickness of the glass lens, some cropping occurs, a small price to pay for an enclosure suitable for long term immersion in deep water.
Please note that our Deep Water products may not be purchased for resale to third parties.
Chemical Resistant
Rated for Deepwater use
Room for a GoPro bacpac accessory
|
Camera |
Compatibility ( Y / N ) |
|
HERO5 |
✘ |
|
HERO5 Session |
✘ |
|
HERO4 Black |
✘ |
|
HERO4 Silver |
✘ |
|
HERO4 Session |
✘ |
|
HERO (2014) |
✘ |
|
HERO3+ Black |
✘ |
|
HERO3+ Silver |
✘ |
|
HERO3 Black |
✘ |
|
HERO3 Silver |
✘ |
|
HERO3 White |
✘ |
|
HERO2 |
✔ |
|
HERO |
✘ |
Compatible with the GoPro HERO2 cameras.
Information about how to use the housings, care, and maintenance is in the Deep Water Housing User Manual. Read this information before using the housing. It is prudent to test the housing without a camera before deploying for the first time.
How long will the battery last before it is discharged?
The Intervalometer can be used to extend the battery life. How long the battery will last depends on many factors such as the camera you are using and the shooting schedule you have programmed. There are just too many variables to give an accurate answer.
An analysis of the power consumption of the various GoPro cameras and an explanation of how to calculate the theoretical battery life is outlined on the GoPro Power Consumption page. Our Time Lapse Calculator page can be used to assist you in planning the interval times of your time lapse project.
How large is the Deepwater Housing and what does it Weigh?
The HERO2 housing weighs 1 lb 2 oz (531 gr). The dimensions are: Length 3" 1/8 (8.3cm), Width 2" 3/8 (6.4cm), Height 2" 1/2 (6.6cm).
What are the Physical Properties and Chemical Composition of the Lens?
The lens in the deep water housing is made from borosilicate. The light transmission is about 87%. Optically, it's free of distortion. It is also unaffected by temperature change. It is heat resistant up to 800 C. (The camera isn't).
Chemical Composition:
- SiO2 = 80.6% Coefficient of expansion (20°C-300°C) 3.3 x 10-6 K-1
- B2O3 = 13.0% Density 2.23g/cm3
- Na2O = 4.0% Refractive index (Sodium D line) 1.474
- Al2O3 = 2.3% Dielectric constant (1MHz, 20°C) 4.6
Physical Properties:
- Specific heat (20°C) 750J/kg°C
- Refractive index (Sodium D line) = 1.474
- Thermal conductivity (20°C) 1.14W/m°C
- Visible light transmission, 2mm thick glass = 92%
- Poisson’s Ratio (25°C - 400°C) 0.2
- Visible light transmission, 5mm thick glass = 91%
- Young’s Modulus (25°C) 6400 kg/mm2
How much is the image cropped due to the thickness of the lens?
Pictured are images showing the cropping due to the lens.
Discontinued
Product Code: DW-GPH
THIS PRODUCT IS DISCONTINUED.
One of the most frequently asked for accessories to go with the Deep Water Housings is a light to provide illumination at depth.
The Deepwater Light Housing is a machined aluminum housing that is extremely versatile. It is rated to a depth of 1250m or 4,100ft. The outside dimensions of this cylindrical canister are 7.1" long (18cm) with a diameter of 3" (7.6cm). The housing provides a 5.7"x2.5" (14.5cm x 6.3cm) internal space area that can be used for a video LED light, flashlight or streamlined POV cameras such as the GoPro Sessions.
Please note that our Deep Water products may not be purchased for resale to third parties.
Resistant to Saltwater
Rated for Deepwater use
Information about how to use the housings, care, and maintenance is in the Deep Water Housing User Manual. Although this manual is for the GoPro Housing, the care and maintenance information is similar (the depth rating is not). Read this information before using the housing. It is prudent to test the housing without a camera before deploying for the first time.
Does the Deepwater Light Housing connect to the Intervalometer?
No. The flashlight and housing are independent from the deep water housing. There is no connection between them. In future, we plan to interface the intervalometer with the flashlight, but that is not available at this time.
Discontinued
Product Code 50°: DWF50
The LED Flashlights are designed to fit the Deepwater flashlight housings. The flashlight has 5 different settings: High (2000 lumens), Medium (1400 Lumens), Low (600 Lumens), strobe and SOS, On the high setting, the LiPo batteries will last about 1 hour. The color is neutral white at 4000K.
The 50° narrow spotlight is useful for general underwater flashlight use.
The 120° wide angle beam is useful for illuminating a broad area similar to the GoPro camera coverage.
Available for Deepwater use
Multiple Light settings
Rechargeable Battery
Does the Flashlight connect to the Intervalometer?
There is no connection between the flashlight and the Intervalometer. In future, we plan to interface the intervalometer with the flashlight, but that is not available at this time.
Discontinued
CamDo Product Code: OGP12
GoPro Product Code: CHDHS-502
Cameras available in our construction time lapse packs
Features 4K30, 1440p60 and 1080p90 video, 10MP photos up to 30 frames per second, built-in Wi-Fi and Bluetooth®, and Protune™ for photos and video. Waterproof to 33’ (10m).
What's Included:
High-definition video recording
With resolutions of 4K30, 1440p60, 1080p90 and 720p120 for crisp, smooth footage.
Ultrawide-angle glass lens
Captures an expansive field of view for stunning videos and photos. Ultrawide, medium and narrow field-of-view options allow you to select your perspective.
Protune
Offers cinema-quality capture of photos and videos, as well as manual control over color, ISO limit, exposure and other settings. HiLight Tag makes it easy to identify video highlights to simplify playback, editing and sharing.
Night Photo and Night Lapse
Enable customization of exposure settings for nighttime time lapse photos. Auto low-light setting adjusts frame rates to optimize performance in low-light conditions.
10.0MP still image resolution
Allows you to take stunning photographs. Burst shooting up to 30 fps.
QuikCapture
Allows you to turn the camera on and begin recording with the push of a single button. SuperView lets you record video with an immersive field of view.
Time Lapse mode
Allows you to capture long term time lapse footage with BlinkX.
Auto image rotation
Helps simplify setup.
Waterproof Camera
The camera is waterproof rated for use at depths of up to 33' without an additional housing, so you can capture your underwater adventures in stunning high-definition.
Wearable, mountable design
Ensures flexible recording options and compatibility with most GoPro mounts (curved and flat adhesive mounts included).
Built-in microphone
Records crisp, clear sound with minimal distortion and a high dynamic range.
microSD slot
Supports select cards for expansive storage capabilities (card not included).
Rechargeable battery
Integrated (non-removable) battery is rechargeable to enable extended recording.
Built-in Wi-Fi and Bluetooth
Offer enhanced connectivity to the GoPro app (download required), as well as a range of accessories (not included).|
Warranty Terms - Parts |
1 year limited |
Memory Card Compatibility |
microSD |
|
Warranty Terms - Labor |
1 year limited |
Memory Card Included |
No |
|
Height |
1.49 inches |
Number Of Batteries Required |
Integrated battery |
|
Width |
1.49 inches |
Touch Screen |
No |
|
Depth |
1.41 inches |
Tripod/Monopod Mountable |
Yes |
|
Weight |
2.6 ounces |
Water Resistant |
Yes |
|
Digital Zoom |
None |
Wi-Fi Built-in |
Yes |
|
Effective Megapixels |
10 megapixels |
Maximum Depth Of Water Resistance |
33 feet |
|
Max Resolution |
4K |
Digital Memory Format |
Flash Memory |
|
Image Stabilization |
Yes |
High Definition |
Yes |
Get Started With GoPro
Learn about the GoPro App, download GoPro software and more. Get started >
HERO5 Session User Manual
Learn how to use your GoPro product, and get all the info you'll need here. View User Manual >
Discontinued
Product Code: OGP07
Features 4K30, 2.7K60 and 1080p120 video, 12MP photos up to 30 frames per second, built-in Wi-Fi and Bluetooth®, and Protune™ for photos and video. Waterproof to 131’ (40m).
What's Included:
High-definition video recording
With resolutions of 4K30, 2.7K60, 1080p120 and 720p240 for crisp, smooth footage.
Ultrawide-angle glass lens
Captures an expansive field of view for stunning videos and photos. Ultrawide, medium and narrow field-of-view options allow you to select your perspective.
Protune
Offers cinema-quality capture of photos and videos, as well as manual control over color, ISO limit, exposure and other settings. HiLight Tag makes it easy to identify video highlights to simplify playback, editing and sharing.
Night Photo and Night Lapse
Enable customization of exposure settings for nighttime time lapse photos. Auto low-light setting adjusts frame rates to optimize performance in low-light conditions.
12.0MP still image resolution
Allows you to take stunning photographs. Burst shooting up to 30 fps.
QuikCapture
Allows you to turn the camera on and begin recording with the push of a single button. SuperView lets you record video with an immersive field of view.
Time Lapse Video mode
Allows you to capture time lapse footage.
Auto image rotation
Helps simplify setup.
Standard waterproof housing
Enables use at depths of up to 131', so you can capture your underwater adventures in stunning high-definition.
Wearable, mountable design
Ensures flexible recording options and compatibility with most GoPro mounts (curved and flat adhesive mounts included).
Built-in microphone
Records crisp, clear sound with minimal distortion and a high dynamic range.
microSD slot
Supports select cards for expansive storage capabilities (card not included).
Rechargeable battery
Enables extended recording.
Built-in Wi-Fi and Bluetooth
Offer enhanced connectivity to the GoPro app (download required), as well as a range of accessories (not included).|
Warranty Terms - Parts |
1 year limited |
Memory Card Compatibility |
microSD |
|
Warranty Terms - Labor |
1 year limited |
Memory Card Included |
No |
|
Height |
4 inches |
Number Of Batteries Required |
1 |
|
Width |
4.13 inches |
Touch Screen |
No |
|
Weight |
1.3 ounces |
Tripod/Monopod Mountable |
Yes |
|
Color Category |
Silver |
Water Resistant |
Yes |
|
Digital Zoom |
None |
Wi-Fi Built-in |
Yes |
|
Effective Megapixels |
12 megapixels |
Maximum Depth Of Water Resistance |
131 feet |
|
Image Resolution |
1080 |
Digital Memory Format |
Flash Memory |
|
Image Stabilization |
None |
High Definition |
Yes |
Get Started With GoPro
Learn about the GoPro App, download GoPro software and more. Get started >
Quick Start Guide
Want to jump right in? Learn the basics of capturing incredible photos and videos with your GoPro. Download Now >
HERO4 Black User Manual
Learn how to use your GoPro product, and get all the info you'll need here. View User Manual >
© 2020 CamDo Solutions. | SALES: +1 650 353 4568 sales@cam-do.com | support@cam-do.com
